Introduction
Every overhead lift depends on the hoist. It's the motor, drum, or chain mechanism that actually raises and lowers the load, while the rest of the crane structure carries it side to side.
Many buyers use "crane" and "hoist" interchangeably, and that mix-up causes real problems during procurement, maintenance conversations, and OSHA compliance reviews.
A maintenance supervisor asking for a "new crane" might really just need a hoist replacement. Wrong terminology can delay a quote by days.
This guide breaks down the difference between a crane and a hoist, then walks through the main hoist types by lifting medium and power source. It also covers the selection factors and pricing American manufacturers need when shopping for their next hoist.
Key Takeaways
- A hoist lifts and lowers loads; the crane adds horizontal travel on a bridge and runway
- Main types use chain or wire rope, powered manually, electrically, or pneumatically
- Capacity, duty cycle, lift height, and facility environment should drive your final selection
- Pricing varies widely by tonnage, lifting medium, and control features
Overhead Crane vs. Hoist: Understanding the Key Differences
An overhead crane is the full system: a bridge that rides along a runway, moving loads left and right, plus the hoist mounted to its trolley for vertical lifting.
OSHA's definition backs this up. Under 29 CFR 1910.179, a crane lifts and lowers a load and moves it horizontally. An overhead crane specifically uses a movable bridge that carries a hoisting mechanism along a fixed runway.
A hoist, by contrast, only moves vertically. It's the mechanical unit, built around a drum, chain, or wire rope, that does the actual lifting and lowering. It attaches to the crane's trolley or bridge through a hook, lug, or trolley mount, but it can't move a load sideways on its own.
Here's the distinction in plain terms:
- Crane: Moves loads horizontally and vertically via a bridge and runway system
- Hoist: Moves loads vertically only, mounted onto the crane as one component
Think of the crane as the highway and the hoist as the engine doing the heavy lifting. You need both working together, but swapping the terms on a quote request can get you the wrong equipment—or a quote for a full crane when you only needed a hoist.
Getting the terminology right also:
- Speeds up procurement, since suppliers quote hoists and cranes as separate line items
- Keeps maintenance communication accurate when reporting a hoist issue versus a bridge issue
- Supports clear ASME and OSHA compliance documentation during audits
At American Hoists, this distinction shows up directly in the product catalog. Chain and wire rope hoists sell as standalone units for facilities upgrading existing cranes, while crane kits bundle a hoist with bridge and trolley hardware for a complete system. Knowing which one your facility needs before requesting a quote saves a round of back-and-forth with a specialist.
Types of Overhead Crane Hoists by Lifting Medium
Hoists come in two main lifting mediums: chain and wire rope. The right choice depends mostly on tonnage, lift height, and how often the hoist runs.

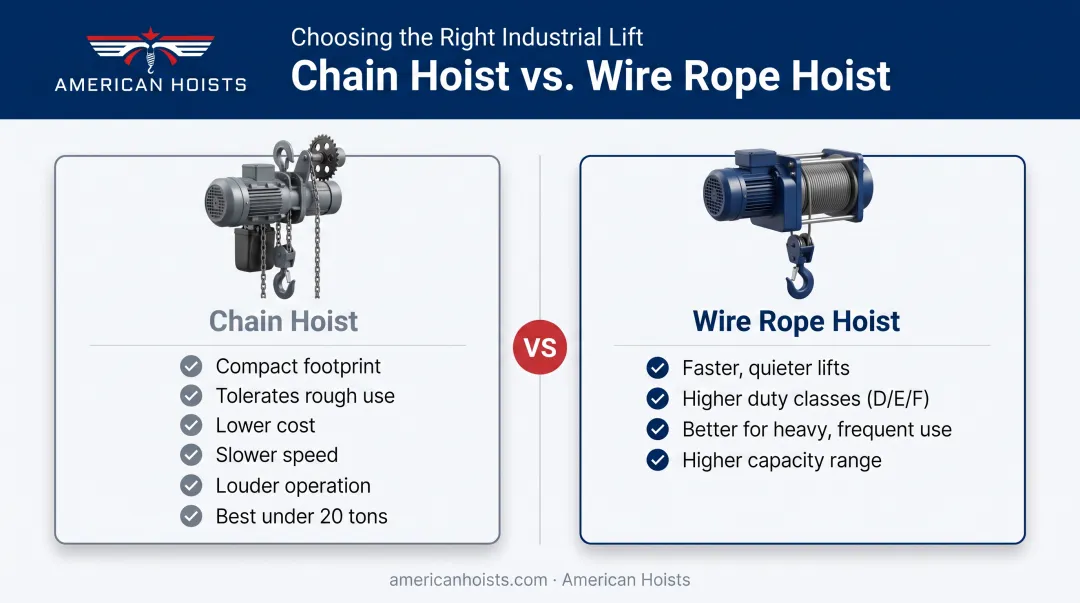

Chain Hoists
Chain hoists pull a metal load chain through a sprocket to lift the load. They're compact, tolerate rougher handling, and need less maintenance than wire rope units, which makes them a common choice for lighter-duty applications.
Advantages:
- Fits tight headroom with a compact footprint
- Handles rougher day-to-day use without major wear
- Scales from fractional-ton up into double-digit capacities
Trade-offs:
- Slower lifting speeds than wire rope equivalents
- Louder operation during lifts
- Less efficient at greater lift heights, since chain adds weight and bulk as it stacks

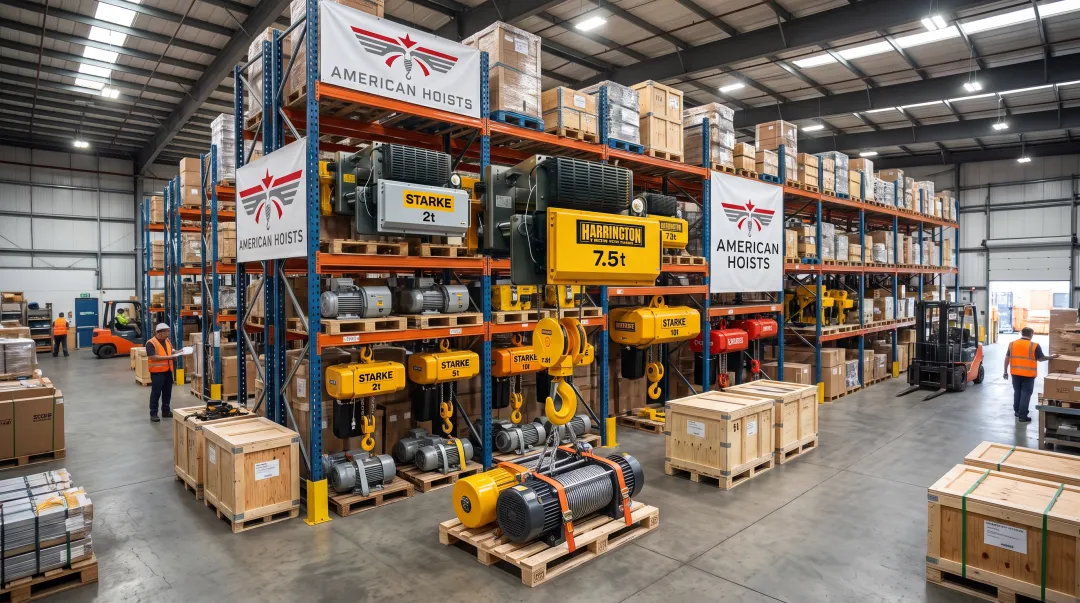

American Hoists' Harrington NER electric chain hoist lineup covers 1/8 ton through 20 tons across 19 in-stock three-phase models, most shipping in 2 to 4 weeks. That range covers the vast majority of chain-hoist needs in a typical fabrication shop or production line.
Wire Rope Hoists
Wire rope hoists wrap steel cable around a grooved drum instead of pulling chain through a sprocket. That design delivers faster and quieter lifts, and it holds up better under frequent, heavy-duty use.
Many units are rated for the CMAA's most demanding service classes: Class D, E, or F, used for continuous, near-rated-capacity lifting.
Choose wire rope over chain when:
- Capacity requirements climb into double-digit tons
- Lift heights exceed what a chain hoist handles efficiently
- The application involves frequent, heavy, or near-continuous lifting
American Hoists carries Harrington RY and Starke SMW electric wire rope hoists from 3 to 15 tons. Most Harrington RY models ship next day; Starke SMW lead times vary by configuration.

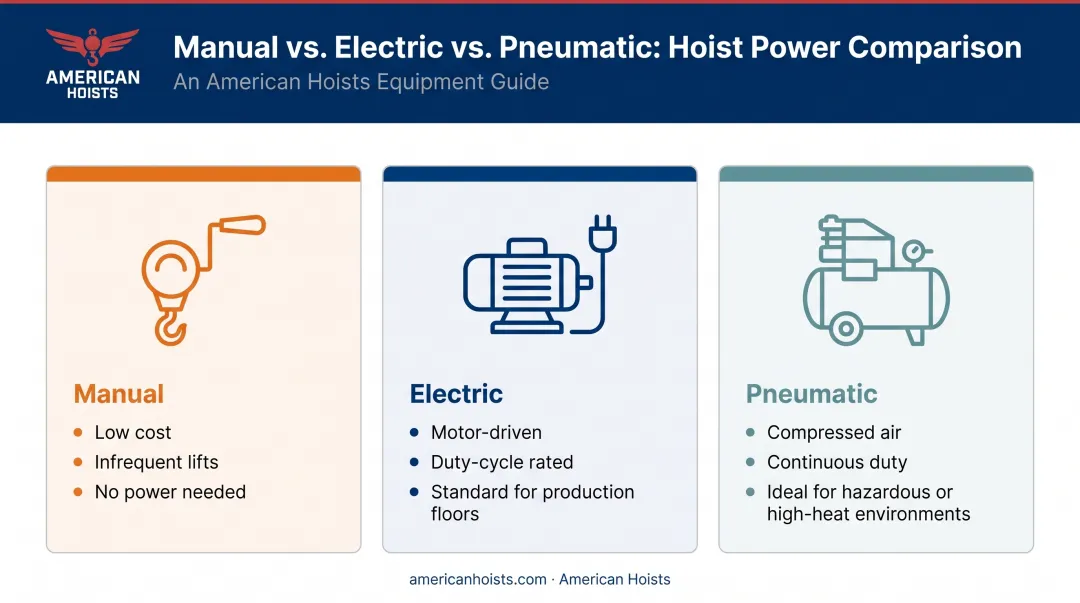

Types of Overhead Crane Hoists by Power Source
Beyond lifting medium, hoists differ by what powers them: human effort, an electric motor, or compressed air. Each option fits a different combination of budget, usage frequency, and facility conditions.
Manual Hoists
Manual hoists rely on hand chain or lever/ratchet mechanisms and need no motor. They're built for occasional lifts rather than daily production cycles, with capacities ranging from a fraction of a ton up to 50 tons in some manufacturer catalogs.
Manual units make sense when:
- Lifts happen infrequently or in locations without power access
- Budget matters more than lifting speed
- Load and lift height stay modest
American Hoists focuses its catalog on electric equipment rather than manual hoists, since most production facilities outgrow manual capacity quickly once volume increases.
Electric Hoists
Electric hoists use a motor and gearing system to do the lifting, controlled through a pendant. HMI and ASME duty cycle classifications set how long these units can run before a cooldown. That limit matters for facilities running multiple shifts.
American Hoists' electric chain and wire rope hoists carry an H4 duty rating built for heavy industrial use. The Harrington NER chain hoist line is rated for 60-minute continuous duty. Both product lines use hard-wired pendant control.
Pneumatic (Air) Hoists
Air hoists run on compressed air instead of electricity, letting them operate continuously without the overheating risk that limits electric motors. That makes them the preferred choice in hazardous, explosion-proof, or high-heat environments where sparks or motor heat pose a real risk.
Capacity for air hoists can reach up to 100 tons for continuous-duty applications, including offshore rigs, chemical plants, and ATEX-rated zones.
If your facility deals with flammable atmospheres or extreme temperatures, air power is worth a serious look. For most standard manufacturing needs, electric hoists still cover the job.
How to Choose the Right Overhead Crane Hoist for Your Facility
Selecting a hoist comes down to four main factors, each of which narrows the field considerably before you even look at brand or price.
- Load capacity - Match rated capacity to your heaviest expected load, with room for future needs. Never exceed what your supporting structure can handle.
- Lift height - Longer lifts favor wire rope; chain hoists lose efficiency as lift height climbs.
- Duty cycle - How often and how long will the hoist run per hour? High-frequency operations need higher duty-class ratings.
- Mounting configuration - Hook mount, motorized trolley, push trolley, or geared trolley, depending on whether the hoist travels or stays fixed.
Facility environment narrows things further:
- Hazardous atmospheres or extreme heat point toward pneumatic hoists
- Standard indoor manufacturing usually calls for electric hoists
- Occasional, low-volume lifts may only need a manual unit
- Outdoor or corrosive environments may require added protective features regardless of power source
American Hoists offers a custom hoist quote service when your setup isn’t in the standard catalog. Specialists are available 24/7 to match load capacity, duty rating, and mounting style to real production demands.
That help matters most when you’re outfitting a new line or replacing aging equipment under time pressure. Picking the wrong duty class often means a costly do-over within a year or two.
How Much Does an Overhead Crane Hoist Cost?
Pricing depends on four main variables: tonnage, lifting medium, power source, and added features like variable speed control or radio remotes. Entry-level electric units start in the low thousands, while a 20-ton electric chain hoist can climb into the tens of thousands.
For a common 3-ton configuration, buyers typically see:
| Configuration | Typical Price Range |
|---|---|
| 3-ton electric chain hoist | $7,120 - $10,480 |
| 3-ton electric wire rope hoist | $8,495 - $18,120 |
These figures reflect current American Hoists listings for Harrington NER chain hoists and Starke SMW wire rope hoists. Price variation comes from lift height (10 to 40 feet), voltage (230V or 460V), and mounting configuration.
Broader catalog pricing swings even wider. Harrington NER chain hoists range from around $3,430 for a light 1/4-ton unit up to $36,895 for a 20-ton model. Speed matters too: a faster hoist at the same tonnage often costs more than a slower one built for steadier, heavier work.
Other cost drivers worth budgeting for:
- Trolley type - motorized trolleys cost more than plain hook mounts
- Lift height - custom or extended lift heights add to the base price
- Voltage and phase - three-phase 460V setups are standard on industrial floors
- Control style - pendant controls come standard; upgraded controls add cost
American Hoists prices its American-made hoists competitively, with units rated for 24/7 operation so downtime costs stay low over the equipment's life. First-time buyers can apply a $250 discount on their first hoist order. Several models also ship next day or within a week, versus the multi-week lead times common elsewhere.
Frequently Asked Questions
What is the difference between an overhead crane and a hoist?
An overhead crane is the full structure, bridge and runway included, that moves loads both horizontally and vertically. The hoist is the component mounted to the crane that handles vertical lifting only.
How much does a 3 ton overhead hoist cost?
Pricing typically runs from around $7,000 to $18,000 depending on lifting medium, power source, and features like lift height or trolley type. Exact price depends on configuration—request a quote for your specific setup.
What is the difference between a chain hoist and a wire rope hoist?
Chain hoists are compact, tolerate rougher handling, and suit lighter loads at slower speeds. Wire rope hoists lift faster and quieter, and they're the standard choice for higher-capacity, high-frequency applications.
What is the maximum lifting capacity of an overhead crane hoist?
Capacities range from under a ton up to 100 tons or more on heavy-duty systems. Most manufacturing facilities operate in the 1/8-ton to 20-ton range.
How often should an overhead crane hoist be inspected or maintained?
OSHA requires frequent inspections, ranging from daily to monthly depending on use, plus periodic inspections at one-to-twelve-month intervals. Hooks, chains, wire rope, and brakes need particular attention during these checks.
What safety features should I look for in an overhead crane hoist?
Look for upper travel limit switches, a self-setting holding brake that engages automatically when power cuts out, and overload protection that prevents lifting beyond rated capacity. These features are standard on quality electric hoists.
