Who can actually do this work? Simple hook mounts on verified structures are often manageable by trained in-house maintenance teams. Trolley systems, lug-mounted configurations, or anything approaching high capacity should involve certified riggers or technicians. The stakes are real: incorrect mounting causes chain misalignment, premature wear, structural failure, and OSHA violations that can shut down a line.
This guide walks through correct, standards-based chain hoist mounting — from site prep to final validation.
TL;DR
- Complexity hinges on mount type (hook, lug, or trolley) and load capacity
- Structural support and electrical compatibility checks are mandatory before mounting
- Install in order: site prep, positioning, securing, then electrical connection
- Post-mounting validation (limit switches, brake test, load test) is mandatory
- Professional installation is strongly recommended for industrial-capacity or trolley-mounted hoists
Mounting Guide for Chain Hoists

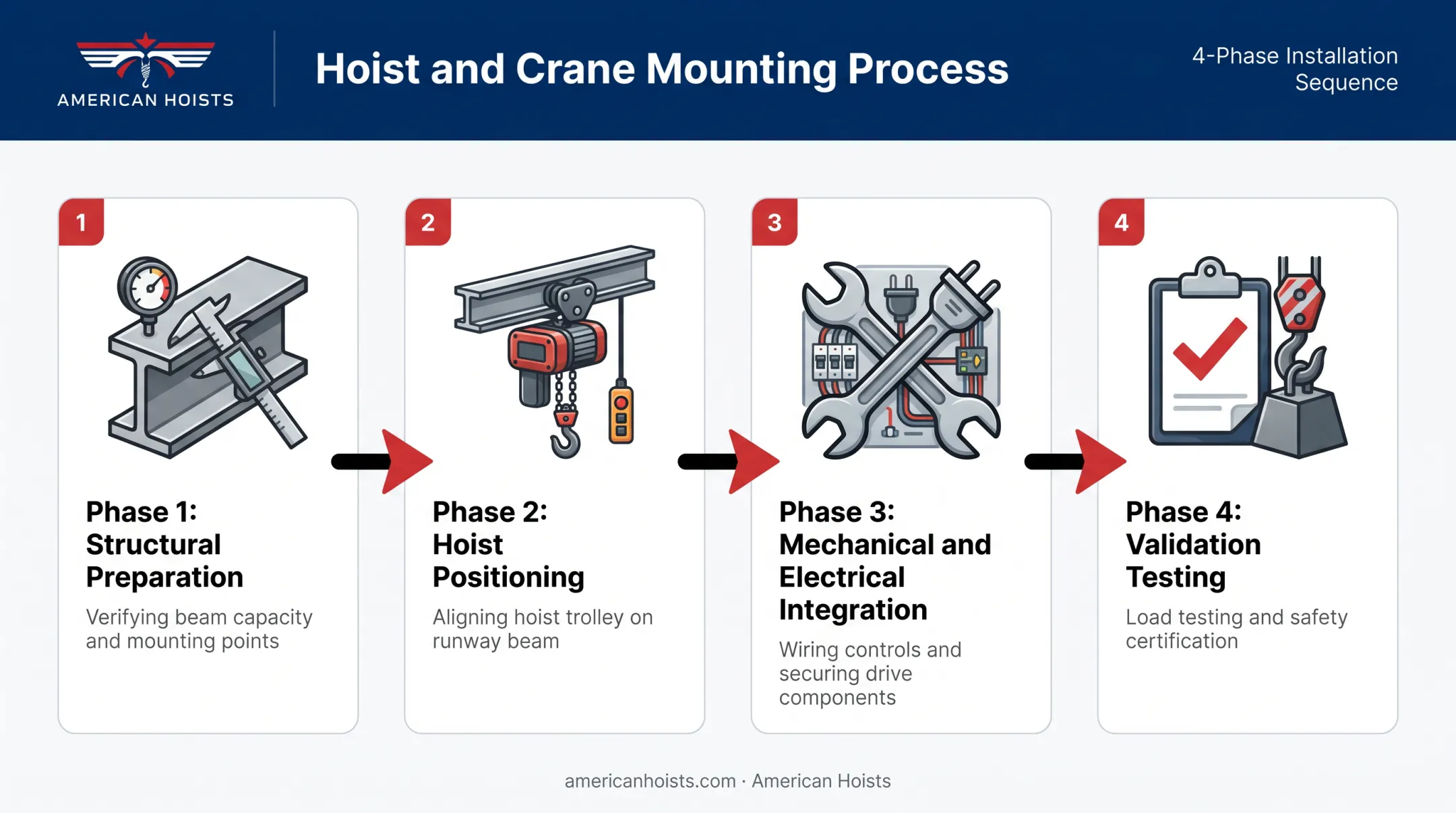

The mounting process breaks into four phases:
- Structural preparation
- Hoist positioning
- Mechanical and electrical integration
- Validation testing Hook mounts on a pre-verified structure can often be completed in a few hours by a trained team. Trolley or beam-mounted systems on overhead runways need more coordination: measuring beam flanges, adjusting trolley spacers, and verifying travel. Those setups often benefit from a specialist's involvement. ASME B30.16-2022 is the governing standard for installation, inspection, testing, and maintenance of overhead underhung and stationary hoists, including electric chain hoists. It is the reference point throughout this guide, alongside manufacturer documentation for the specific hoist and trolley being installed.
Prerequisites and Safety Considerations
Before any hardware goes near the beam, lock down the fundamentals below. Structural readiness:
- Supporting beam, lug, or trolley track must handle rated capacity plus dynamic loading
- Suspension and supporting structure must be evaluated as adequate per manufacturer docs
- Consult a qualified structural professional when beam capacity is not already documented
- Beam flange width must match the trolley being installed Flange ranges are product-specific, not universal I-beam standards. Harrington SMR trolleys, for example, adjust across roughly 2.28 to 6.02 inches depending on capacity, with wider optional ranges available. Compatibility checks:
- Voltage and phase matching (covered later in this guide)
- Mounting type fit: hook, lug, or trolley (not every model supports every mount)
- Chain container fitment and clearance Compliance: OSHA 1910.179 (overhead and gantry cranes) and ASME B30.16 both apply, along with Hoist Manufacturers Institute guidance on structural inspection and PPE. Never mount on:
- A structure with an unverified load rating
- Visible corrosion or structural damage
- A power source with unconfirmed grounding
Tools and Parts Required
Stage tools and hardware before you start so the install is not interrupted mid-lift.
- Torque wrench (use the manufacturer’s model-specific torque specs; never guess)
- Lifting equipment for positioning heavier units
- Electrical testing equipment for voltage, phase, and grounding checks
- Manufacturer-specified mounting hardware only (do not swap in a generic fastener chart) Essential parts typically include the suspension shaft, split pins, and adjusting spacers for trolley assembly. Extra spacers for fine-tuning trolley width are optional but useful on nonstandard flanges.

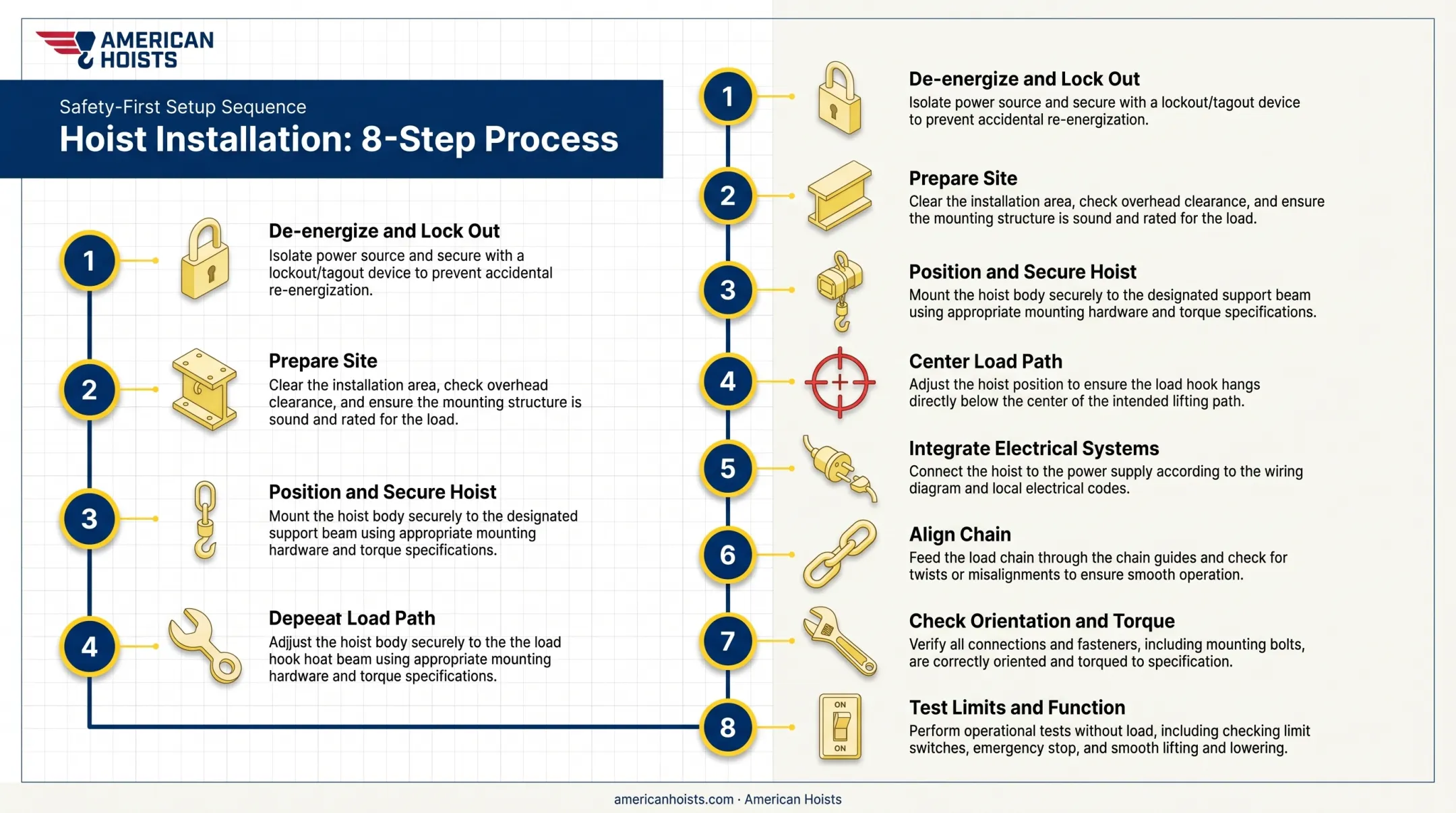

How to Mount a Chain Hoist (Step-by-Step)
Skipping torque verification, alignment checks, or limit-switch tests is exactly how you end up with premature chain wear six months down the line. Follow the sequence.
- De-energize and lock out. Disconnect and tag out power before any installation work begins.
- Prepare the site. Inspect the beam or track for structural soundness. Clear debris, check for corrosion, and confirm the suspension point is adequate.
- Position and secure the hoist. For hook mounts, attach the top hook to the fixed suspension point so it sits centered in the hook saddle with the latch fully engaged. For trolley mounts, assemble the trolley separately, set width about 1/8 to 3/16 inch greater than the beam flange, install suspension shaft spacers, and secure the fixing shaft with split pins (bend both branches fully). Install the trolley from the beam end per the manual, then reinstall the beam end-stop.
- Center the load path. The hoist must sit centered under the intended lift zone, with no offset that puts lateral strain on the chain.
- Integrate electrical systems. Connect power matching the required voltage and phase, ground the unit, and install a disconnect switch near the operator station.
- Align the chain. Confirm it runs untwisted through the full lift range.
- Check orientation and torque. Hoist and trolley nameplates should face the same direction. Every fastener must meet manufacturer torque specifications, not an estimate.
- Test limits and function. With no load on the hook, verify upper and lower limit switches stop travel cleanly, then run a full up/down cycle and confirm smooth operation before releasing the unit to service.
On electrical compatibility: Harrington's NER chain hoist lineup runs on 230V or 460V, three-phase, 60 Hz power, with a separate 115V control circuit. Always match the nameplate to your facility's supply before energizing anything.
Post-Mounting Checks and Validation
Mounting isn't complete until validation confirms the hoist is safe to operate.
Visual and structural checks:
- Confirm every bolt is torqued to spec
- Verify the chain is untwisted and lubricated
- Test that the trolley moves freely along the track with no binding
Functional testing:
- Run the hoist through its full lift range with no load
- Test up/down controls and the emergency stop
- Confirm the upper limit switch functions under no load, and never treat it as an operating control
Limit switch and brake testing: These need to engage correctly and prevent over-travel. A trolley travel brake, for example, should bring the unit to a smooth stop within roughly 10% of its traveling speed once the pendant button releases.

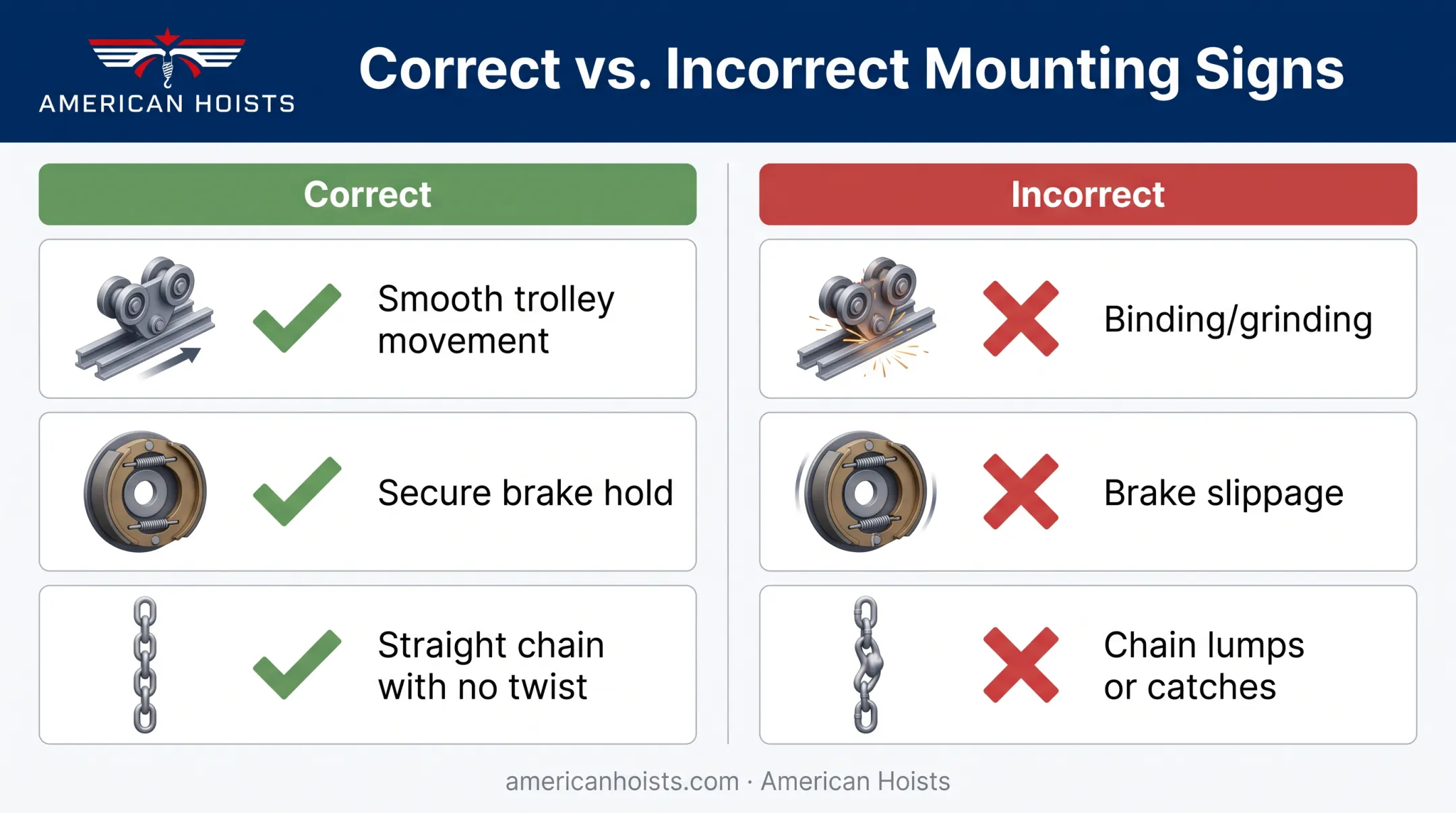

Signs of correct vs. incorrect mounting:
| Correct | Incorrect |
|---|---|
| Smooth, unobstructed trolley movement | Binding or grinding along the track |
| Secure brake hold under tension | Brake slippage |
| Chain runs straight, no twist | Chain lumps or catches |
Don't skip the rated load test required under ASME B30.16 after reassembly. Failures missed during validation typically surface later under full production load, when discovery is far more expensive and dangerous.
This matters even more for equipment built for continuous duty. American Hoists' Harrington-manufactured hoists are engineered for 24/7 operation, and that reliability only holds up if the validation on day one is thorough. A hoist mounted correctly from the start protects the performance it was built to deliver.
Common Mounting Problems and Fixes
Chain Misalignment or Twisting
- Problem: The chain binds or twists during operation.
- Cause: Improper alignment during mounting, or incorrect chain container attachment.
- Fix: Re-thread the chain, verify sheave alignment, and confirm the container is correctly attached before retesting.
Trolley Binding on the Beam
- Problem: The trolley doesn't move smoothly along the beam.
- Cause: Incorrect width adjustment or insufficient clearance between roller and flange.
- Fix: Adjust spacers to restore proper flange clearance, then retest movement through the full travel range.

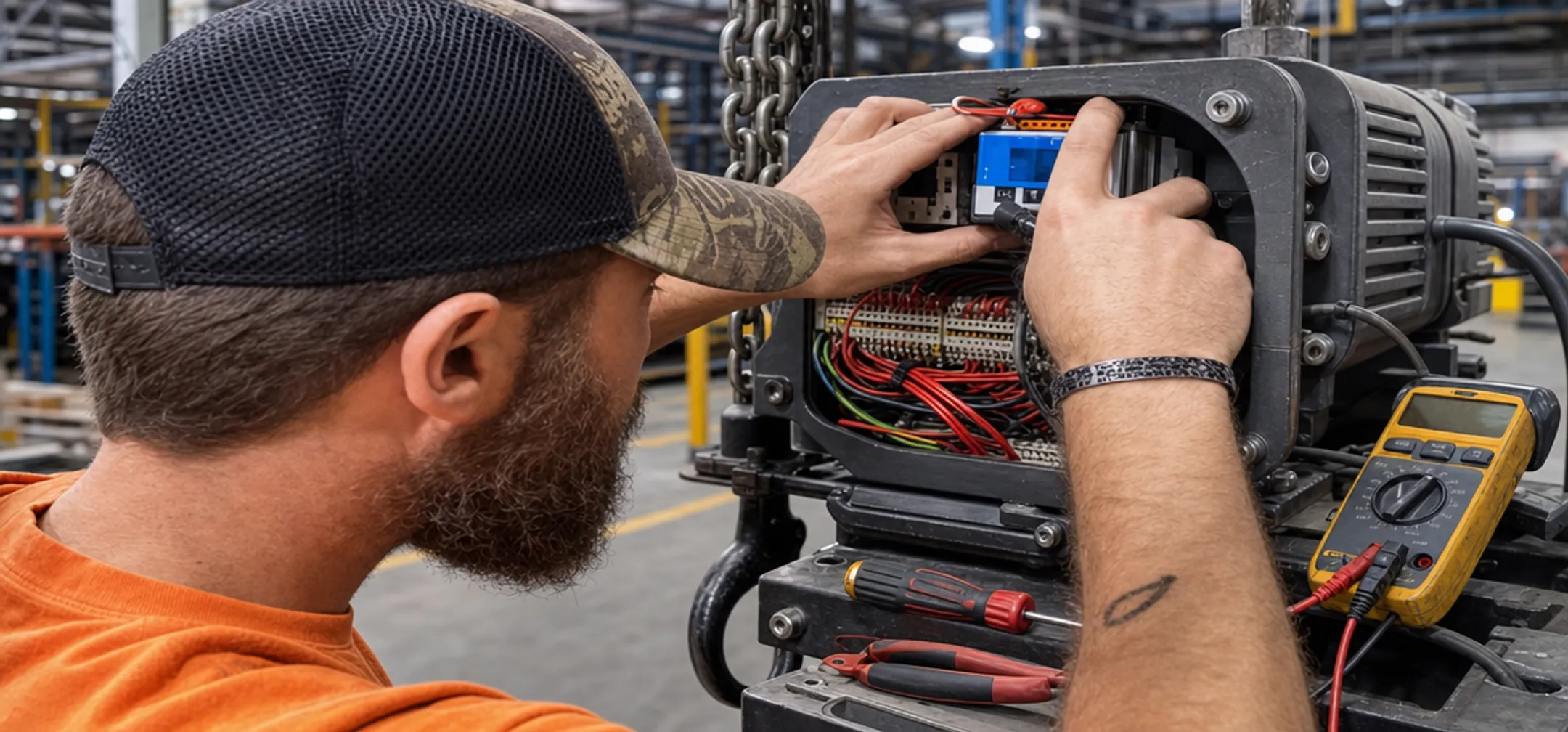

Electrical Malfunction After Mounting
- Problem: The hoist doesn't respond to controls.
- Cause: Voltage mismatch, loose grounding, or incorrect motor rotation direction.
- Fix: Verify power supply specs against the nameplate, recheck grounding connections, and confirm rotation direction. If UP doesn't raise the load, lock out the source and swap two of the three input power leads.
Pro Tips for Mounting Chain Hoists Effectively
- Schedule mounting during planned downtime. Rushing load testing to meet a production deadline is how corners get cut.
- Protect hardware from corrosion. Humid or outdoor facilities need corrosion-resistant fasteners and regular inspection of mounting points.
- Document everything. Torque values, test results, and adjustments matter for future maintenance, compliance audits, and the next person who inspects the hoist.
- Bring in a specialist for trolley or high-capacity mounts. American Hoists' specialist support team is available around the clock to help you select mounting hardware and configuration before equipment ships, including trolley setups and beam-flange questions.
Conclusion
Correct mounting directly shapes hoist performance, operator safety, and how long the equipment lasts. Cutting corners on structural verification, electrical checks, or validation testing rarely fails immediately — it fails later, at the worst time.
Verify the structure, complete the electrical checks, and run full validation before the first production lift. A hoist mounted right the first time protects your crew and keeps the line running.
Frequently Asked Questions
Can I mount an electric chain hoist myself?
Small-capacity hook mounts on a pre-verified structure can often be handled by a trained in-house team. Trolley systems or higher-capacity units should involve technicians trained on OSHA and ASME B30.16 compliance.
Do chain hoists need certification after mounting?
Yes. A rated load test and inspection per ASME B30.16 and HMI standards is required before the hoist goes into operational use, especially after disassembly and reassembly.
What's the difference between a hook-mounted and trolley-mounted chain hoist?
A hook mount is a fixed suspension point: the hoist doesn't travel. A trolley mount rides along a beam, giving the hoist lateral movement across the work area.
How often should a mounted chain hoist be inspected?
OSHA requires frequent visual inspections (daily to monthly, depending on the component) and periodic comprehensive inspections at longer intervals. Hooks and chains specifically need daily visual checks plus monthly certified inspection.
What beam or structure specifications are needed to mount a chain hoist?
You'll need a confirmed load rating, structural soundness with no corrosion, and a flange width matching your trolley's adjustment range. Figures vary by model, so always check manufacturer specs.
What happens if a chain hoist is mounted with incorrect voltage?
Voltage mismatch can cause the hoist to malfunction, damage the motor, or create a serious safety hazard. Always match the nameplate voltage and phase to your facility's power supply before energizing.
