Manufacturers running lifting equipment 24/7 don't get a second chance on rope selection.
This guide breaks down wire rope construction types, steel grades, OSHA inspection requirements, and the specific warning signs that tell you it's time to replace. We'll also look at how American Hoists supplies wire rope hoists built for continuous, heavy-duty American manufacturing operations.
Key Takeaways
- Rope construction (lay type, strand count, core) directly determines strength, flexibility, and fatigue life
- Compacted strand and rotation-resistant ropes cover most crane and hoist lifting applications
- OSHA requires monthly wire rope checks for general industry; construction rules add annual thorough inspections
- Replace rope based on broken-wire counts, diameter loss, and visible damage—not a blanket schedule
- Match rope and hoist specs to your duty cycle from day one to cut downtime and safety risk
Wire Rope Fundamentals: Construction, Grades, and Types
Wire rope starts with individual wires twisted into strands, then strands twisted around a core. The core, whether steel or fiber, affects how the rope handles load and bending. Most crane applications use steel-core (IWRC) construction for strength and heat resistance.
"Wire rope" and "wire cable" are often used interchangeably. Rope diameter is measured across the full cross-section—strands and core included—not just the outer wires.
Lay Types: Flexibility vs. Kink Resistance
- Regular lay: Wires twist opposite to strand direction. This is the standard choice for most crane operations, offering good stability and resistance to kinking.
- Lang lay: Wires and strands twist the same direction, increasing sheave/drum contact for better wear and fatigue resistance. Tradeoff: more crush-sensitive and higher torque, so both ends must be fixed against rotation.
- Alternate lay: Combines Lang lay flexibility with regular lay stability in the same rope.
Steel Grades and Corrosion Protection
Wire tensile strength is graded in three common tiers:
| Grade | Approximate Tensile Range (N/mm²) |
|---|---|
| IPS | 1570–1960 |
| EIPS | 1770–2160 |
| EEIPS | 1960–2160 |
These figures describe wire strength, not the finished rope’s certified breaking force. Always confirm the manufacturer’s rope-specific rating.
For corrosion resistance, galvanized coatings handle basic rust protection. Zinc-aluminum (Bezinal-type) coatings add passivation and cathodic protection, which helps in humid or alkaline environments.
Compacted Strand vs. Rotation-Resistant Rope
Two categories dominate crane and hoist lifting:
- Compacted strand ropes: Compaction increases wire contact area, boosting breaking strength, abrasion resistance, fatigue resistance, and crush resistance. Ideal for heavy-duty, multilayer-spooling drums.

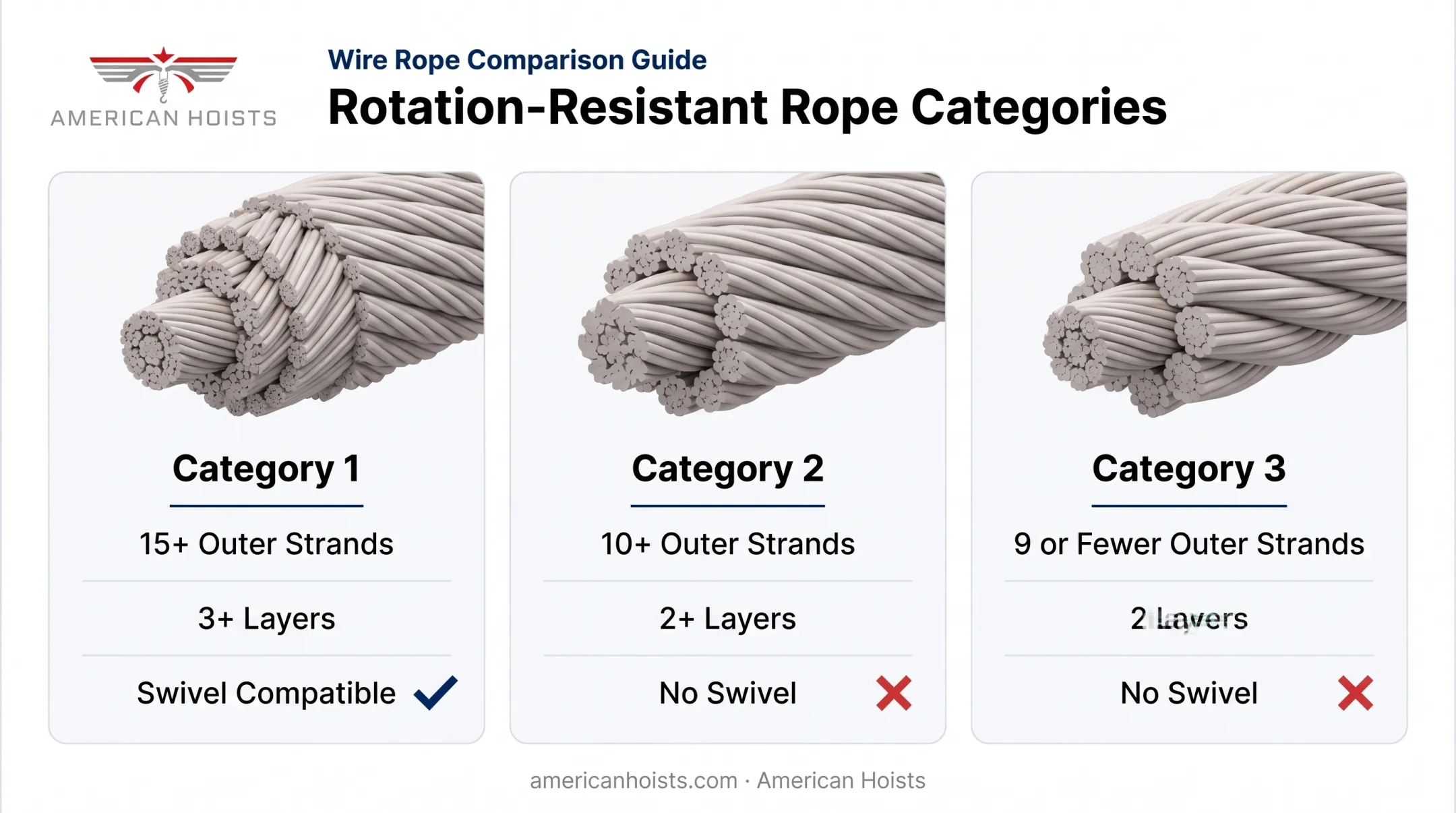

- Rotation-resistant ropes: Built to limit load spin. They fall into three categories:
| Category | Structure | Swivel Compatible? |
|---|---|---|
| 1 | 15+ outer strands, 3+ layers | Yes |
| 2 | 10+ outer strands, 2+ layers | No |
| 3 | 9 or fewer outer strands, 2 layers | No |
Only Category 1 rope should be paired with a swivel. Using a swivel with Category 2 or 3 rope can create instability instead of controlling rotation.
Boom hoist ropes follow different limits than other operating lines. An industry summary of ASME B30.5 reports a minimum 3.5:1 design factor and a 15:1 minimum bend ratio, versus 5:1 and 18:1 for many other operating ropes. Always verify against the current B30.5 edition and your crane manufacturer’s specs.
How to Select the Right Wire Rope for Your Crane or Hoist
Static load capacity is only part of the equation. Dynamic loads from starts, stops, and speed changes put extra stress on rope that a nameplate rating won't capture.
Match the Rope to the Mechanism
- Boom hoist: Needs bend-resistant construction with tighter design factors due to sheave configuration
- Main hoist: Typically prioritizes strength and fatigue resistance for repetitive lifting cycles
- Trolley/luffing: Often demands flexibility for tighter turning radii
Always cross-check selections against OEM crane manual specifications. Rope that technically fits the drum but doesn't match the manufacturer's design intent creates premature wear or safety gaps.
Crushing, Fatigue, and Bendability

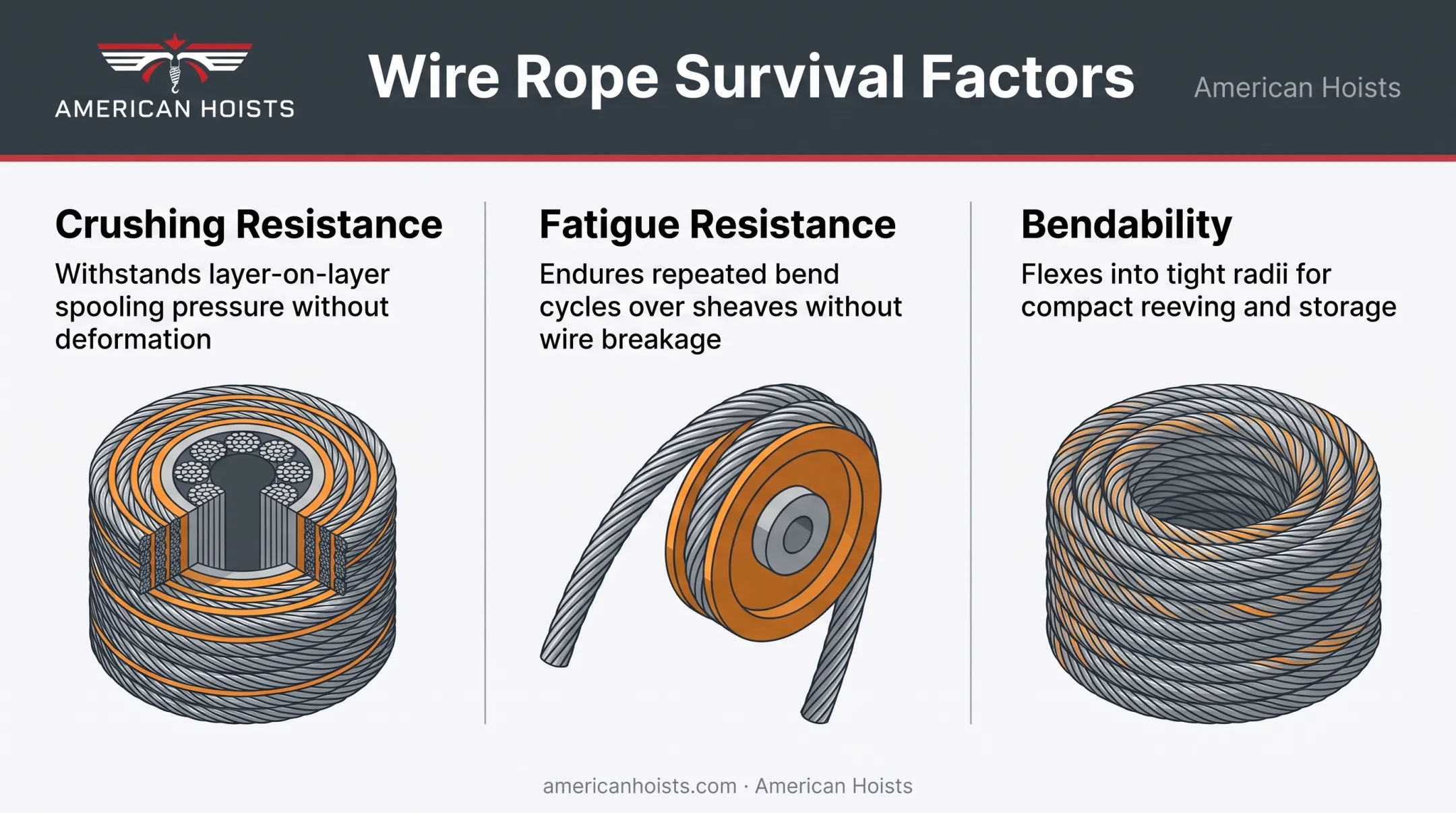

Three factors determine how rope survives contact with sheaves and drums:
- Crushing resistance: Critical on multilayer drums where wraps stack and compress
- Fatigue resistance: Matters most where rope repeatedly bends over sheaves, reverse bends, or equalizers
- Bendability: Determines how tightly rope can wrap without structural damage
Groove condition matters too. A groove that's too tight pinches the rope; one too wide flattens it. Both accelerate failure.
Corrosion and Environment
Indoor manufacturing facilities generally face less corrosion exposure than outdoor construction sites, but humidity, coolant spray, and washdown areas still warrant galvanized or coated rope. Match the coating to your specific plant environment rather than defaulting to the cheapest option.
Duty cycle should shape the rope choice from day one. Continuous operation calls for fatigue-resistant construction and coatings that hold up under constant cycling—not a spec built only around peak lift weight. American Hoists' wire rope hoists, including the Starke SMW series rated ASME H4 for heavy industrial use, are built for that continuous-duty environment, so the hoist and its rope need to match the same real-world cycle.
OSHA Standards and Inspection Requirements for Wire Rope
Inspection frequency depends on which OSHA standard applies to your equipment.

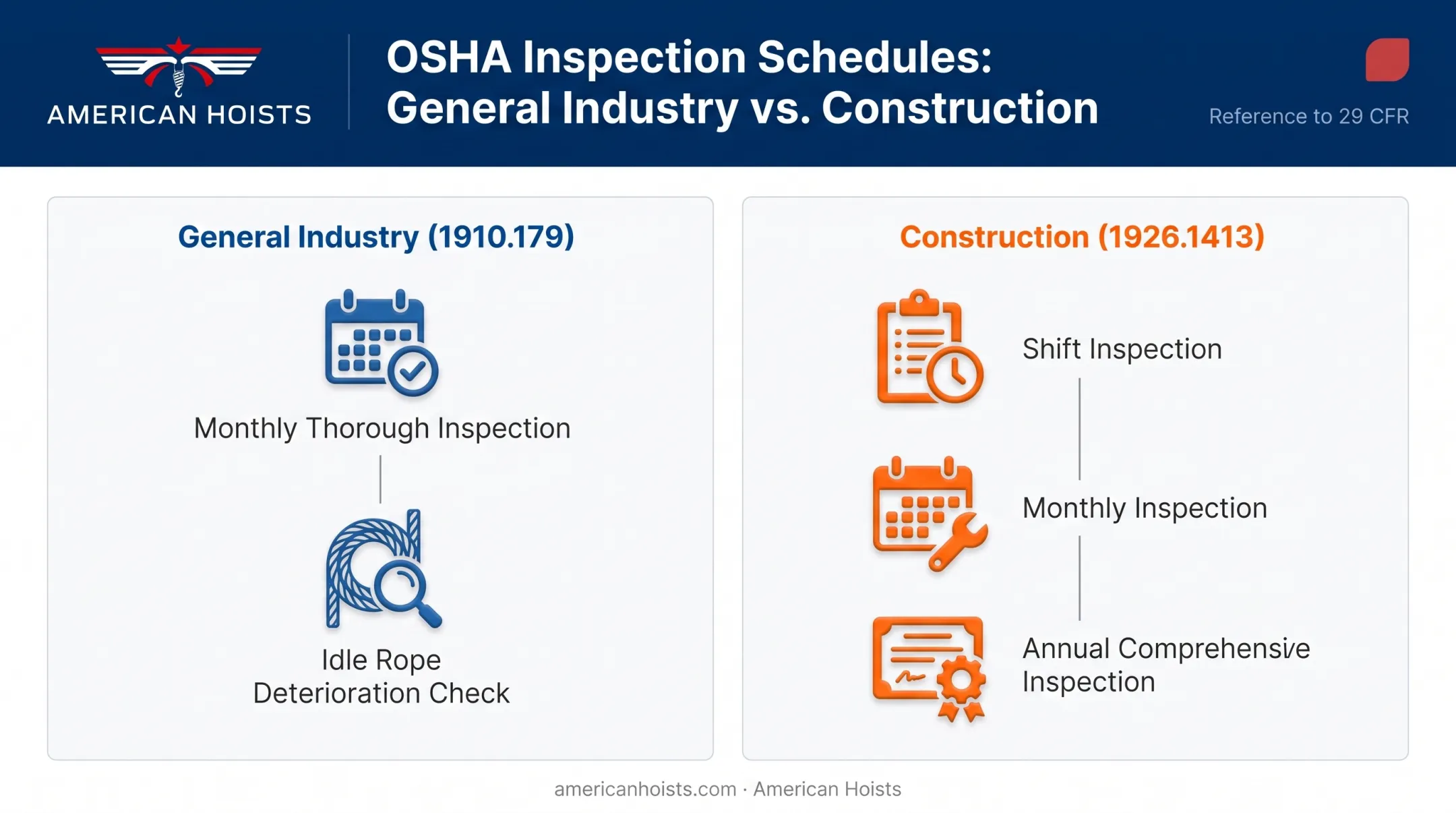

General industry cranes (29 CFR 1910.179):
- Thorough inspection of all running rope at least once monthly, with a signed, dated certification record
- Rope idle for a month or more gets a full deterioration check before returning to service
Construction cranes (29 CFR 1926.1413):
- Visual inspection by a competent person before or during each shift
- Monthly inspection following shift-inspection requirements
- Comprehensive annual inspection by a qualified person covering the entire rope surface, hidden sections, reverse bends, and sheaves
Inspection Methods
- Visual inspection: Quick check for obvious distortion, kinking, or corrosion
- Rag-and-visual method: Running a rag along the rope surface to catch broken wire ends that visual checks miss
- Diameter measurement: Comparing current diameter against nominal to catch core degradation or wear
Who Can Inspect
OSHA requires inspections by qualified or trained personnel—people with recognized credentials, professional standing, or extensive hands-on experience.
CMAA Specification 78 sets a higher practical bar: at least 2,000 hours of crane and hoist field experience, plus written and practical competency testing. Treat OSHA's definition as the enforceable floor and CMAA guidance as the benchmark for who should run your inspections.
Warning Signs: When to Replace Your Crane's Wire Rope
The broken-wire threshold that gets quoted most often (10% of wires broken in a rope lay) actually comes from OSHA's rigging standard for slings, not the general crane running-rope rule. For crane rope itself, the actual thresholds are more specific:
- Running rope: Six randomly distributed broken wires in one rope lay, or three broken wires in one strand within a lay
- Rotation-resistant rope: Two randomly distributed broken wires in six rope diameters, or four broken wires in 30 rope diameters
Worked example: If your rope has a 3-foot lay length and you count seven broken wires scattered across that section on a standard running rope, you've exceeded the threshold. Time to replace, not repair.
Other Replacement Triggers

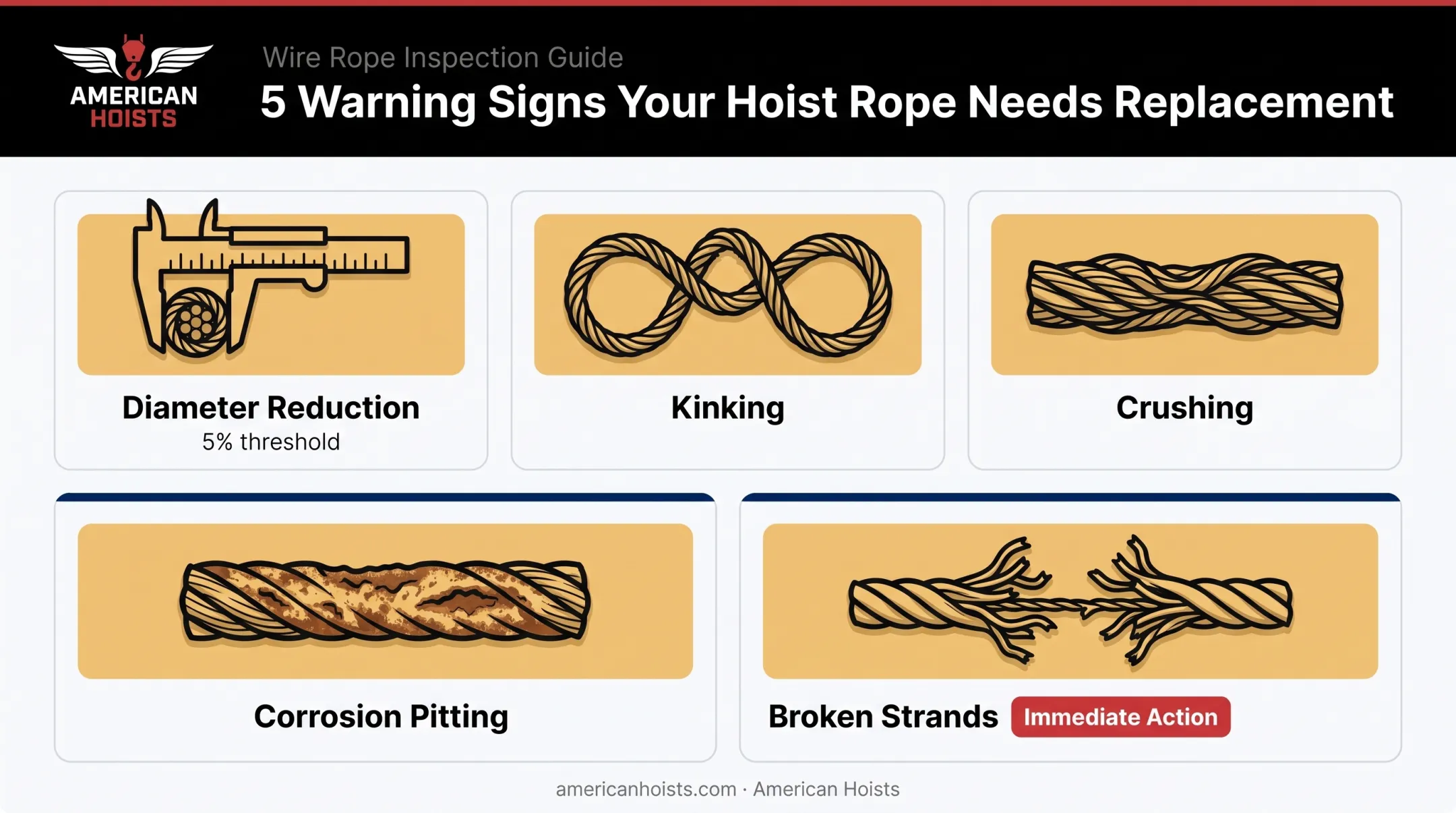

- Diameter reduction exceeding 5% from nominal, often signaling internal core damage
- Kinking from improper handling or installation
- Crushing from overloaded drum layers or pinched grooves
- Corrosion pitting, especially in humid or washdown environments
- Broken strands (distinct from single broken wires and always cause for immediate action)
Rotation-resistant rope deserves extra scrutiny beyond the broken-wire counts above. Core protrusion or internal distortion can develop before any obvious external wire damage shows up.
Pair your inspection schedule with proactive maintenance. Catching wear early, before it forces an emergency replacement, keeps production lines running instead of sitting idle.
Why American Manufacturers Choose American Hoists for Reliable Lifting Equipment
Rope selection means nothing if the hoist itself isn't built for your operation's demands. American Hoists supplies Harrington RY and Starke SMW electric wire rope hoists engineered for heavy-duty, continuous use:
- Harrington RY Series: 3 to 10 tons, lift heights from 25 to 40 feet, most models ship next day
- Starke SMW Series: 3 to 15 tons, ASME H4 heavy-industrial duty class, standard models ship in about a week
Both lines are built to cut rope wear. They use Independent Wire Rope Core construction with a coated core, plus a 360° polymer rope guide that limits abrasion at the drum.
American Hoists pairs over a decade of industrial hoist expertise with straightforward online ordering. Call 817-779-4820 anytime and you reach a hoist specialist who can help you choose the right unit.
For configurations outside standard catalog options, the custom hoist quote form sends your specs to a specialist who can help you spec the unit correctly the first time.
New customers can claim $250 off their first hoist order by joining the mailing list.
Frequently Asked Questions
What type of wire rope is used in cranes?
Cranes commonly use 6x19 rope (favoring abrasion resistance), 6x36 (favoring bend fatigue resistance), rotation-resistant rope, and compacted strand rope. The right choice depends on the specific hoist function, whether it's boom hoist, main hoist, or trolley.
What are the OSHA standards for wire rope use?
General industry cranes require monthly thorough inspections under 1910.179; construction cranes require shift, monthly, and annual inspections under 1926.1413. All inspections must be performed by qualified or competent personnel as defined by OSHA.
How do I know if my crane's wire rope needs replacing?
Look for specific broken-wire counts (six per lay for running rope, fewer for rotation-resistant rope), diameter loss over 5%, kinking, corrosion pitting, or any broken strand. Broken strands always warrant immediate replacement.
What's the difference between rotation-resistant and compacted strand wire rope?
Rotation-resistant rope prevents load spin during lifting, useful for single-part line applications. Compacted strand rope maximizes strength, abrasion resistance, and crush resistance through increased wire contact area.
How often should wire rope be lubricated?
Factory lubrication protects rope initially, but it wears off over time. Check lubrication condition at least monthly, and relubricate based on your specific environment, duty cycle, and rope type before drying or corrosion sets in.
Can I use any wire rope on my hoist, or does it need to match OEM specs?
Always follow OEM manual specifications. This is especially critical for rotation-resistant rope, where swivel compatibility and category selection directly affect operational safety.
