Plant managers frequently ask for a "hoist" when they actually need a full crane system, or the reverse. That mix-up leads to wrong quotes, delayed installs, and equipment that doesn't match the job in front of it.
The financial stakes are real. Unplanned overhead-crane downtime can run $10,000 to $100,000 or more per hour, according to Mazzella Companies — a cost most facilities can't absorb over a terminology mistake.
This guide clarifies the crane-versus-hoist distinction, breaks down the main types of each, and gives you a practical framework for choosing and maintaining the right combination.
Key Takeaways
- Know the split: a crane is the full lifting structure; the hoist is the motorized unit that raises the load.
- Match hoist type—chain or wire rope, electric or air—to load size and duty cycle.
- Right-size by capacity, duty cycle, span, and power source—not guesswork.
- OSHA and ASME B30 standards set the inspection baseline every facility should follow.

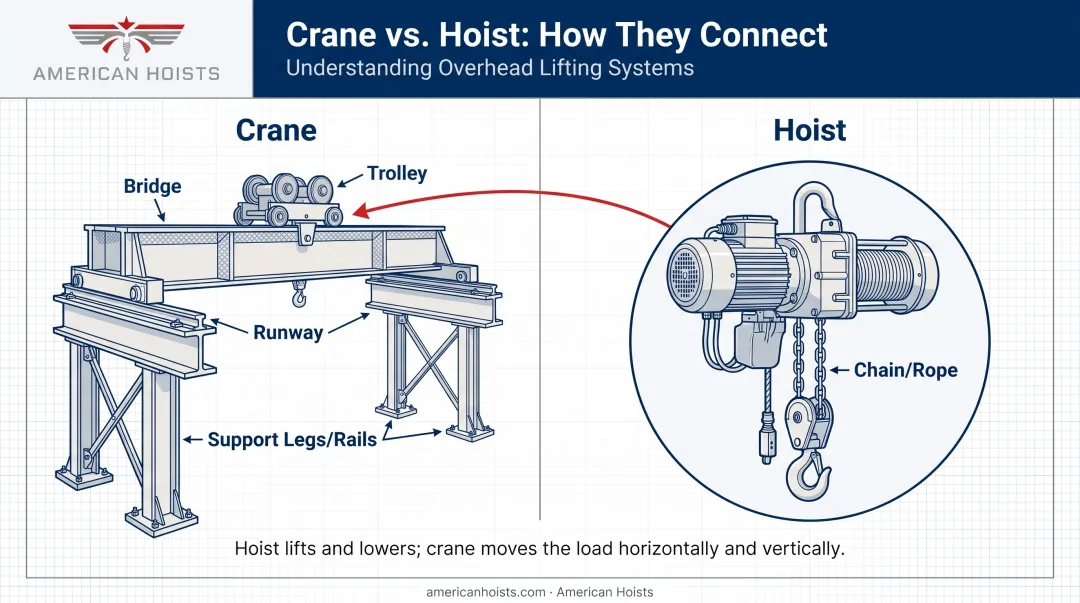

Crane vs. Hoist: Understanding the Difference
OSHA's own definitions settle this argument. Under 29 CFR 1910.179, a crane is "a machine for lifting and lowering a load and moving it horizontally, with the hoisting mechanism an integral part of the machine."
A hoist is defined separately as "an apparatus which may be a part of a crane, exerting a force for lifting or lowering."
In practical terms:
- Crane: the entire structure—bridge, runway, trolley, and supporting legs or rails—that moves a load vertically and horizontally.
- Hoist: the motorized component, usually mounted on the trolley, that does the actual lifting and lowering.
Think of a truck with a winch. The truck (the crane) gets the load where it needs to go across the yard. The winch (the hoist) is what actually pulls the weight off the ground.
You can't run a crane without a hoist, but you can run a hoist without a full crane structure, mounted on a single beam, for example. A hoist is one component of a crane system, not a substitute term for the whole machine.
Hoist vs. Winch: Where the Lines Blur
Some people call a hoist a "winch," and the confusion is understandable. In practice, hoists are built primarily for vertical lifting, while winches more often handle horizontal pulling, though the terms overlap depending on the manufacturer.
Vertical lifting also demands load-holding brakes that a straight horizontal pull usually doesn't require. If a spec sheet labels something a "winch," confirm it's rated and braked for vertical use before assuming it can do a hoist's job.
Types of Industrial Cranes
Cranes vary by structure and how they fit a facility. The three types you'll see most often on industrial floors are overhead, gantry, and jib cranes.
Overhead (Bridge) Cranes
Overhead cranes run along an elevated runway, letting the bridge and trolley cover large stretches of floor space. They're the workhorse of steel fabrication shops, assembly plants, and warehouses handling heavy, repetitive lifts. Because they mount on a runway, they need either building support or an independent support structure.
Facilities building out this configuration typically start with a crane kit rather than a single fixed unit.
American Hoists' top-running and underhung crane kits, rated from 1 to 20 tons with spans up to 84 feet, ship in about 10 days. They give plants a way to add overhead lifting without commissioning a custom structure from the ground up.
Gantry Cranes
Gantry cranes are free-standing. Their legs run on floor-mounted rails or wheels instead of an overhead runway. That makes them the go-to choice for facilities without ceiling support, outdoor storage yards, shipyards, and steel-service centers where a permanent runway isn't practical.
Jib Cranes
Jib cranes use a rotating arm for localized lifting at a single workstation or assembly point, rather than covering an entire bay. They're compact, fast to install, and ideal where full overhead coverage would be overkill.
American Hoists' jib crane lineup covers ¼ ton to 5 tons, in both wall-mounted and foundationless freestanding configurations, priced roughly $2,500 to $6,995 with a 10-day ship time.
Which type fits your plant depends on a few facility factors:
- Ceiling height and available building support
- Floor layout, including outdoor or open-yard coverage needs
- How often you lift, and how heavy those loads are
Types of Industrial Hoists

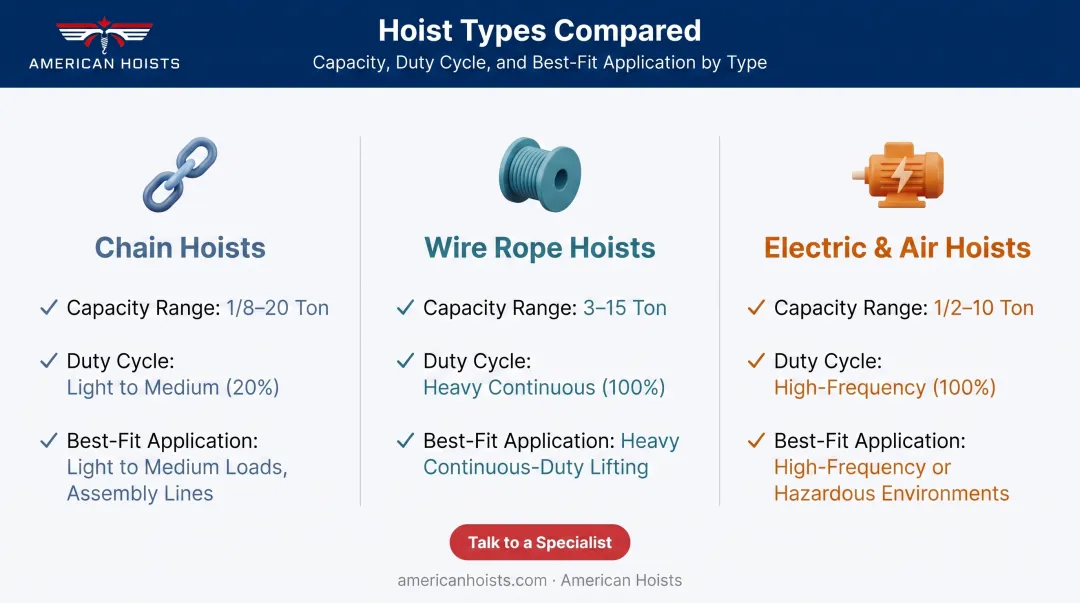

Three hoist types cover almost every industrial application: chain hoists, wire rope hoists, and electric or air-powered hoists. Each fits a different load range and duty cycle.
Chain Hoists
Chain hoists use a metal chain to lift the load and are typically specified for lighter to medium loads. Demag notes that chain hoists suit lighter, frequent lifting in compact installations like assembly lines, largely because they're simpler to install and maintain than wire rope units.
American Hoists' Harrington NER electric chain hoists cover common plant needs with practical lead times:
- Capacity range: 1/8 ton to 20 tons
- Power: three-phase, 230V/460V options
- Lead time: most models ship in 2 to 4 weeks; ½-ton, 1-ton, and 2-ton sizes often dispatch faster
The Guardian Smart Brake is maintenance-free and carries a 10-year hoist-brake warranty, which helps limit unplanned brake service.
Wire Rope Hoists
Wire rope hoists use braided steel cable instead of chain and are built for heavier loads, longer lift heights, and higher speeds — the kind of continuous-duty work Demag associates with harsh conditions and extended load-holding periods.
For heavier, continuous-duty work, American Hoists offers Harrington RY and Starke SMW wire rope hoists built for demanding production schedules:
- Harrington RY: 3 to 10 tons
- Starke SMW: 3 to 15 tons, ASME H4 heavy-industrial duty
- Shared features: TEFC motors, Class F insulation, IP55 enclosures, VFD control for smoother acceleration and less load swing
Several capacities ship next day, subject to confirmation.
Electric and Air Hoists
Electric hoists offer precise, motorized control with far less manual effort than hand-chain units, which is why they dominate high-frequency lifting environments. Air-powered hoists serve a narrower niche: facilities with explosive dust or fumes, where an electric motor's ignition risk is a genuine concern. Most industrial plants standardize on three-phase electric hoists for control, speed, and continuous-duty reliability.
How to Choose the Right Crane and Hoist for Your Operation
Picking the right equipment starts with a short list of hard numbers, not a hunch.
Konecranes identifies lifting capacity, hook-coverage area, travel pattern, span, lift height, and duty cycle as the core inputs for sizing equipment to an existing building. Work through these first:
- Load capacity — the heaviest single load you'll lift, plus a margin for future needs.
- Duty cycle — how often and how long the equipment runs. Classifications range from CMAA Class A (standby) to Class F (continuous severe service).
- Span and height — your facility's ceiling clearance and floor width determine whether overhead, gantry, or jib makes sense.
- Power source and controls — manual, electric, pendant, or radio. Radio controls give operators more flexibility and better sightlines than a fixed pendant.
Getting any one of these wrong is how facilities end up with equipment that's undersized for the job or oversized for the budget.
When your specs don't match a standard catalog listing, work with a specialist. American Hoists offers a custom quote service where hoist experts configure the right setup from your load, span, and duty-cycle details. Buyers submit their specifications and get a build matched to the actual job.
American Hoists also runs a $250 off first hoist order promotion for new mailing-list subscribers.
Safety and Maintenance Best Practices
Equipment doesn't fail without warning — it fails after warning signs get ignored.

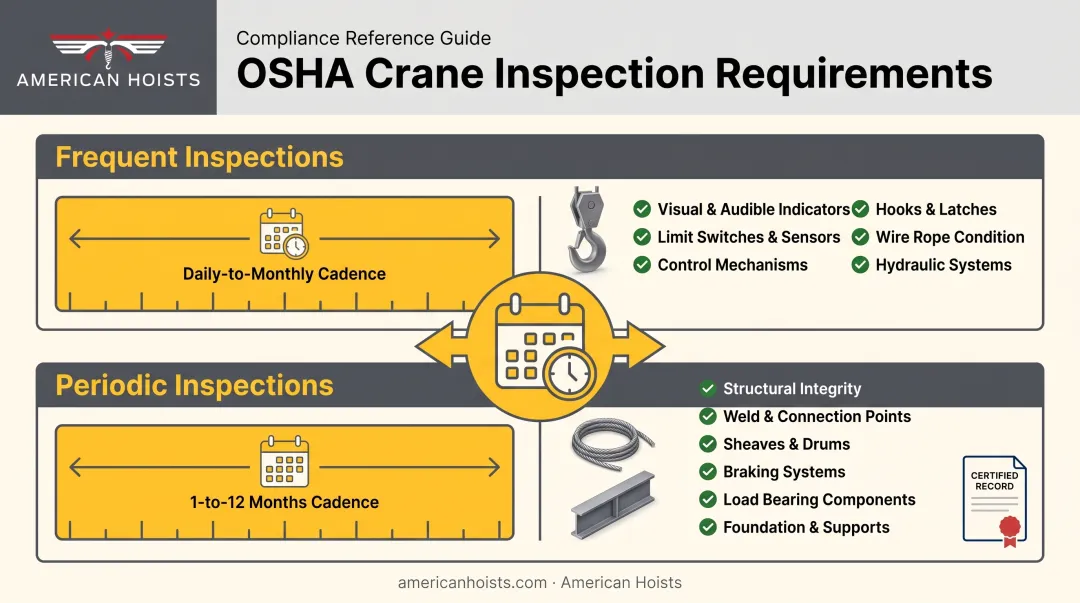

OSHA splits crane inspections into two tiers under 29 CFR 1910.179:
- Frequent inspections — daily to monthly, covering hooks (daily visual, monthly documented) and general operating condition.
- Periodic inspections — every 1 to 12 months depending on usage intensity, covering ropes and structural components with a documented certification record.
Before any new or altered crane goes into service, OSHA requires a function test of hoisting, trolley travel, bridge travel, and all limit devices, with test loads capped at 125% of rated capacity unless the manufacturer specifies otherwise.
ASME B30.2, B30.16, and B30.17 add construction, operation, and maintenance training requirements specific to bridge cranes, hoists, and monorail systems.
Operator training matters just as much as the hardware. OSHA only permits employer-designated, qualified personnel to run covered equipment. Informal "figure it out as you go" training doesn't meet that bar.
Reliable equipment backed by real support also cuts downtime risk. American Hoists' 24/7 specialist access lets maintenance teams call 817-779-4820 or email info@americanhoists.com anytime for warranty questions, configuration help, or equipment selection before a small issue stalls the line.
Frequently Asked Questions
Are hoists and cranes the same thing?
No. A hoist is the lifting mechanism that raises and lowers a load, while a crane is the full structural system (bridge, runway, and trolley) that also moves the load horizontally.
What are the three types of hoists?
The main types are chain hoists and wire rope hoists, available in manual, electric, or air-powered models. Chain units suit lighter loads; wire rope handles heavier, continuous-duty work with smoother control.
What is another name for a hoist?
"Winch" is sometimes used interchangeably, though technically a hoist is built for vertical lifting while a winch more often handles horizontal pulling.
How much weight can an industrial hoist lift?
Capacity varies widely by model, from a few hundred pounds up to 20 tons or more on heavy-duty electric chain hoists, depending on chain or rope rating and motor power.
How often should cranes and hoists be inspected?
OSHA requires frequent inspections (daily to monthly) for hooks and operating parts, plus periodic inspections (every 1 to 12 months) for ropes and structural components, based on usage.
Can a hoist be used without a crane?
Yes. Standalone hoists can mount on a single beam, monorail, or fixed point for simpler lifting tasks that don't need a full bridge-crane structure.
