Wrong power specs cause more than inconvenience. Undersized wiring trips breakers. Non-compliant grounding creates shock hazards. Mismatched voltage burns out motors before their time.
This guide breaks down voltage and phase requirements, power scaling by tonnage, electrification methods, motor selection, and the compliance standards American manufacturers need to know.
Key Takeaways
- Most US industrial cranes run on 460V, three-phase, 60Hz, though 230V options exist for lighter equipment
- Power needs depend on tonnage, span, lift height, and duty cycle—not rated load alone
- Conductor bars and festoon systems are the two primary electrification methods
- NEC Article 610 and OSHA 1910.179 govern crane electrical compliance
- Confirm voltage, amperage, and electrification method with a hoist specialist before install
What Is a Power Source for Overhead and Gantry Cranes?
Overhead cranes draw electricity through two distinct paths: a control circuit (for pendant or radio operation) and a power circuit (driving the hoist, trolley, and bridge motors). Both typically feed from facility mains through a runway conductor system.
Two methods deliver that power to the crane:
- Insulated conductor bar (busbar) systems — sliding collector shoes ride along an enclosed bar, ideal for low-headroom installs and higher-amperage supply
- Festoon (C-track) systems — flat or round cable travels on trolleys along a C-track or I-beam, suited to indoor, outdoor, and high-heat environments
The right choice depends on crane type, runway length, and whether multiple cranes share one runway.
American Hoists' Harrington and Starke equipment runs on 230V or 460V, three-phase, 60Hz power: the standard configurations found across most US industrial facilities. Some Harrington bridge cranes also support single-phase setups depending on configuration. Confirm which option applies to your site before you order.
Power Requirements by Crane Tonnage
Total crane power isn't just the hoist motor. It's the sum of three systems working together:
- Hoist motor — lifts and lowers the load
- Trolley travel motor — moves the hoist across the bridge
- Bridge travel motor — moves the entire assembly along the runway
Total connected power differs from actual power consumption. A crane rated for a high connected load can draw far less in practice. Infrequent cycles or light loads for most of a shift keep real draw well below the nameplate total.
Real Motor Examples by Capacity

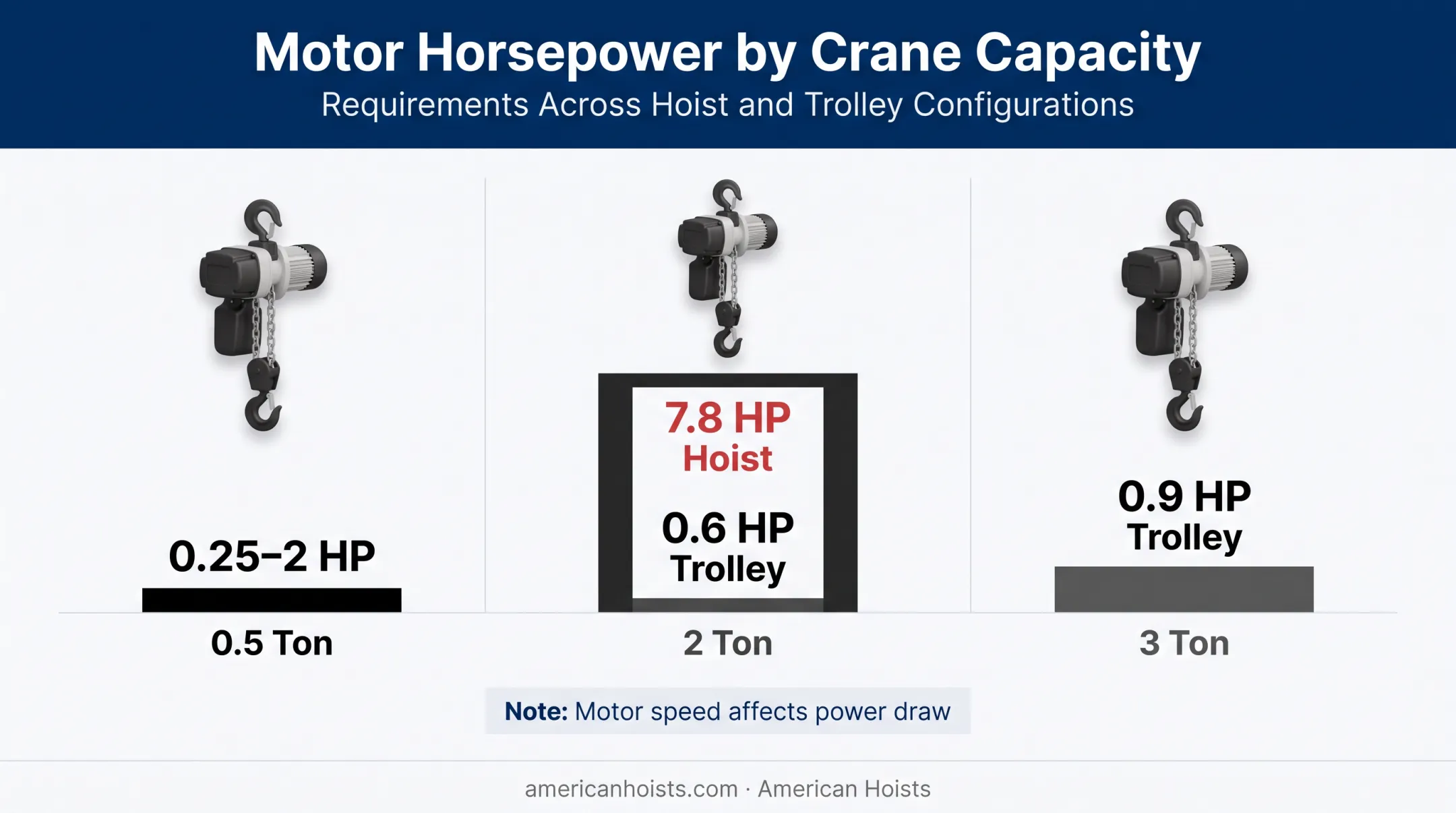

Manufacturer specs show the scale of motor sizing; exact totals still vary by configuration:
| Capacity | Hoist Motor | Notes |
|---|---|---|
| 0.5 ton (CM Lodestar) | 0.25–2 HP | Varies by lift speed (8–64 fpm) |
| 2 ton (Yale YK) | 7.8 HP | Plus 0.6 HP trolley motor, 460V/3-phase |
| 3 ton (Yale YK) | Not published | 0.9 HP trolley motor listed separately |
No single table covers every capacity from 1 ton through 50 tons. Horsepower scales with capacity and speed together. A slower 10-ton hoist may draw less power than a faster 5-ton unit.
Duty Class Matters More Than Tonnage Alone

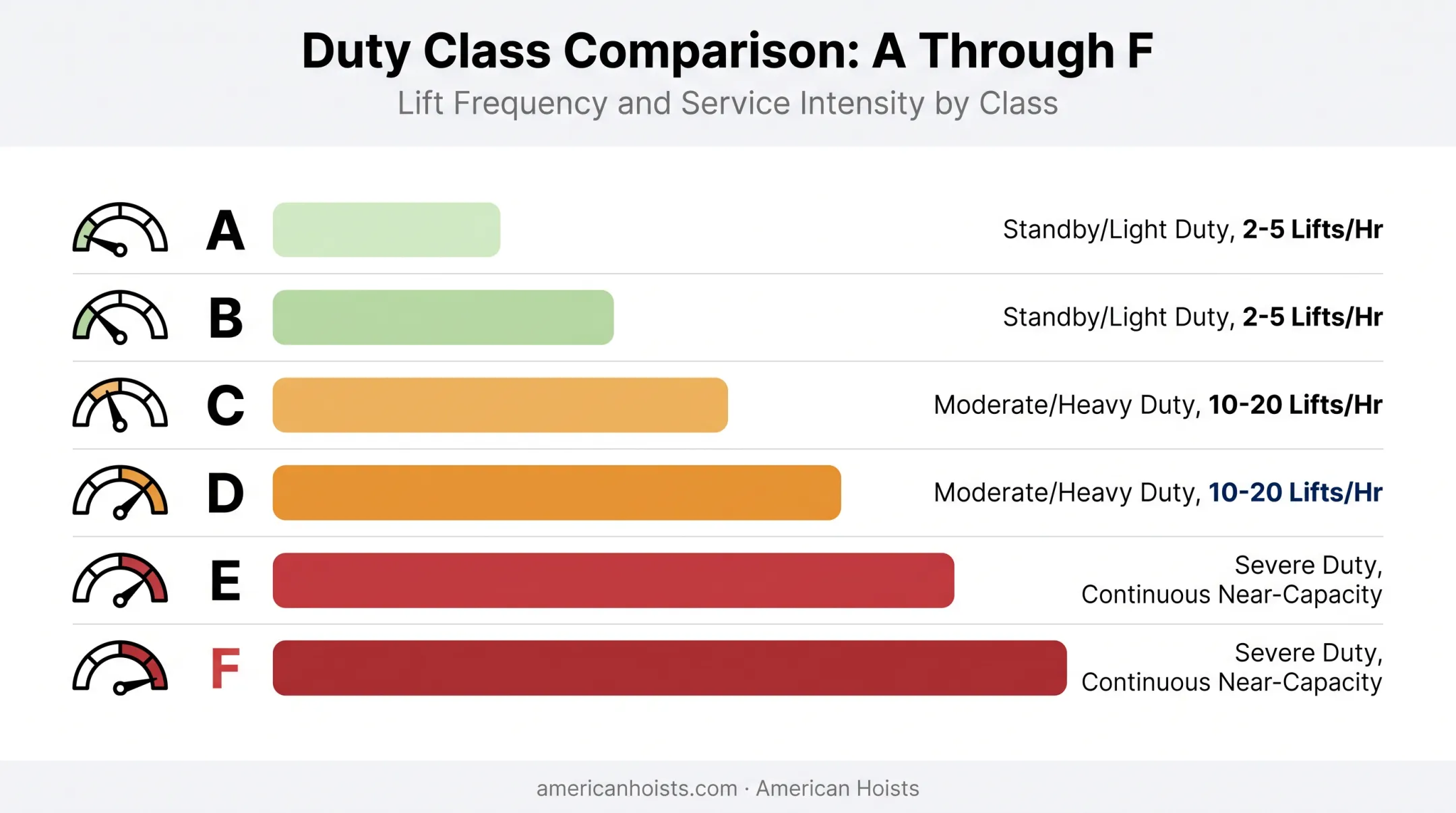

The Crane Manufacturers Association of America (CMAA) classifies cranes into duty categories A through F, not A3–A7 as sometimes assumed:
- Class A/B — standby or light service, 2–5 lifts per hour
- Class C/D — moderate to heavy service, 10–20 lifts per hour
- Class E/F — severe, continuous service near rated capacity
A Class F crane at 10 tons will demand far more from its electrical infrastructure than a Class B crane at the same tonnage. Span, lift height, and travel speed compound that gap.
A 48-foot span with a 33-foot lift height—common on single-girder setups—pushes motor sizing well beyond what tonnage alone suggests. For final electrical planning, American Hoists specialists size power from your span, duty class, and lift profile rather than generic capacity charts.
Voltage, Phase, and Frequency Standards in the US
Standard American industrial crane power is 460V (sometimes listed as 480V), three-phase, 60Hz. Lighter-duty equipment sometimes runs on 230V instead.
Your facility's supply must match the crane's voltage, phase, and frequency. Mismatched voltage causes:
- Inefficient motor operation
- Premature motor failure
- Increased downtime for repairs
Voltage drop is a frequent cause of weak motor performance. CMAA recommends keeping drop under 3% on runways and 2% on bridges. On a 480V system, the 3% runway limit is about 14.4V, according to Hoist Magazine's technical analysis.
Longer conductor runs and higher ambient temperatures both increase drop, so runway length matters more than most buyers expect.
Crane Electrification Methods
Choosing between conductor bars and festoon systems comes down to your facility layout and how many cranes share a runway.

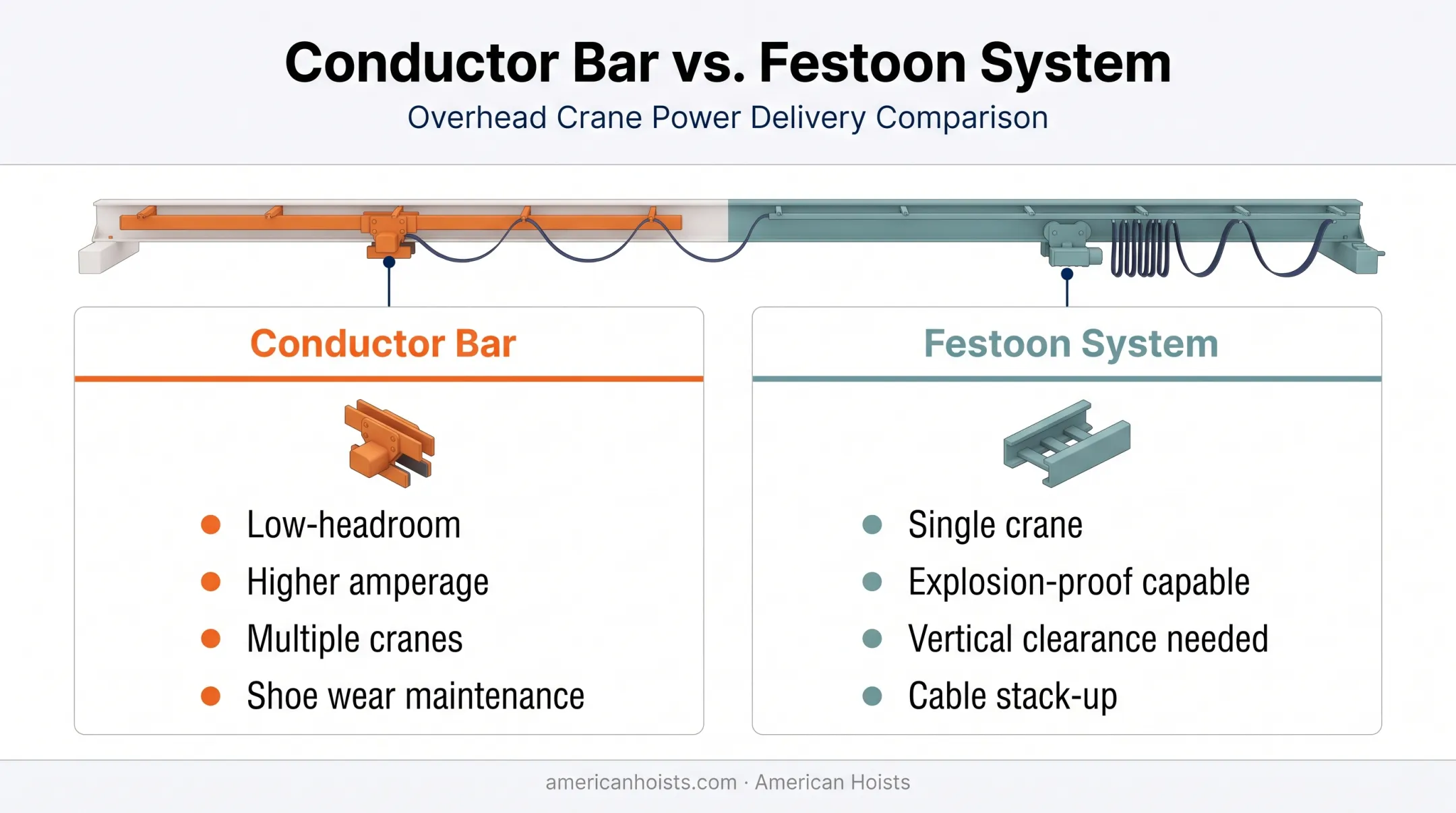

Conductor Bar vs. Festoon: Quick Comparison
| Factor | Conductor Bar | Festoon |
|---|---|---|
| Best for | Multiple cranes, shared runway | Single crane, simpler wiring |
| Headroom | Works in low-clearance spaces | Needs vertical cable clearance |
| Maintenance | Collector shoes wear over time | Cable stack-up on long runs |
| Environment | Not typically explosion-proof | Supports explosion-proof rated setups |
Conductor bars use sliding collector shoes and suit higher-amperage, low-headroom installs. Festoon systems, built around a C-track or square rail, handle indoor, outdoor, and high-heat conditions well, including explosion-proof applications.
American Hoists' underhung crane kits (1–10 tons) ship with a documented festoon package, including power and control cables, cable hangers, and electrification hardware. Top-running kits (1–20 tons) similarly use looped festoon-style cable management along the bridge.
How Far Does a Crane Need to Be From a Power Line?
Beyond runway electrification, site layout must also account for nearby utility lines. OSHA's construction standard (1926.1408) sets minimum clearances that scale with line voltage:
- Up to 50 kV: 10 feet
- 50–200 kV: 15 feet
- 200–350 kV: 20 feet
- 350–500 kV: 25 feet
These figures apply specifically to construction crane operations near power lines, not fixed industrial overhead cranes inside a facility. For permanent installations, consult NEC guidance and a site engineer to determine the applicable clearance for your specific setup.
Motors, Controls, and Safety Devices
Every crane runs on three motor types: hoist, trolley, and bridge travel. Duty cycle drives motor selection as much as tonnage. A crane cycling 20 times an hour needs a heavier-duty motor than one used twice a shift.
Soft Starters and VFDs
Starting current spikes are hard on motors and mechanical components alike. Two technologies manage this:
- Soft starters — control torque during acceleration and deceleration, reducing mechanical stress
- Variable frequency drives (VFDs) — adjust motor speed dynamically, improving both control precision and energy efficiency

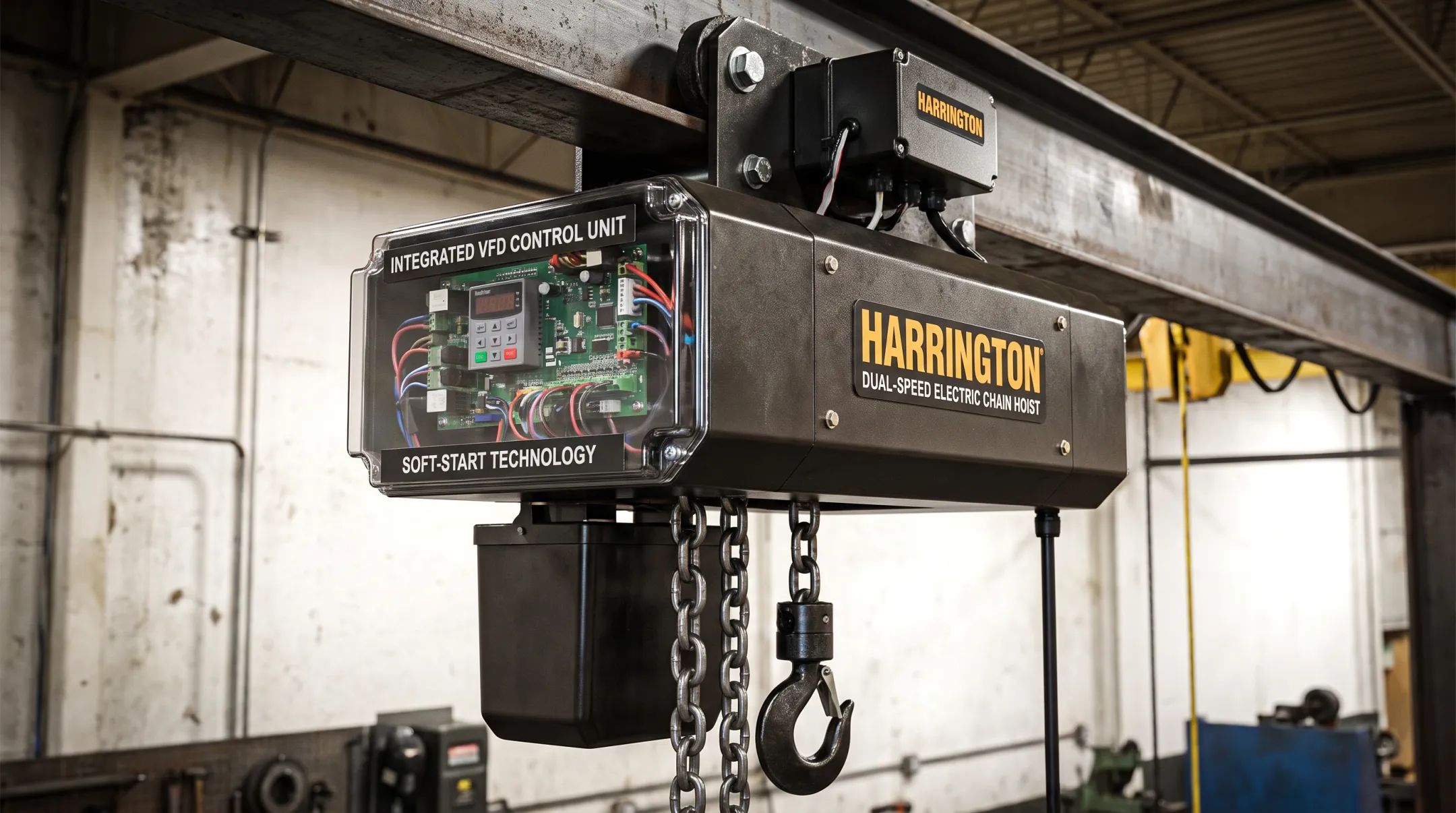

Harrington's dual-speed hoists come with an under-the-cover VFD as standard, not an optional add-on. This provides soft-start and soft-stop operation, cutting down on shock loads, swing, and load bounce. Starke SMW hoists include VFD control across their 3- through 15-ton range as well.
Safety Devices and Grounding
Standard safety features on American Hoists equipment include:
- Electronic overload protection (Harrington RY wire rope hoists)
- Adjustable upper and lower limit switches
- Load cell displays with LED readout (Starke SMW models)
- Pull-rotor motor brakes
Proper grounding follows NEC Article 610.61: exposed metal parts on cranes, hoists, and pendants must be bonded, with a separate bonding conductor required. Bridge and trolley frames should never be grounded through wheels or tracks alone, a point OSHA has clarified in prior interpretations.
Compliance, OSHA Requirements & Choosing the Right Supplier
OSHA's crane electrical rules, found in 1910.179(g), set clear boundaries:
- Control circuits capped at 600V AC or DC
- Pendant push-button voltage limited to 150V AC or 300V DC
- Wiring must comply with 29 CFR Part 1910 Subpart S
- Lockable disconnect switches required, accessible from the floor for runway conductors
What Are the OSHA Requirements for Overhead Cranes?
OSHA references ASME B30.2 for detailed operational standards. That standard covers inspection intervals, maintenance schedules, operator training, and electrical safety provisions.
New cranes installed after August 31, 1971 must meet ANSI B30.2.0-1967 design specifications. For full compliance detail, check OSHA's official documentation—requirements can vary by installation date and crane configuration.
Working With the Right Supplier
Buying a crane without confirming electrical compatibility first is a common, expensive mistake. American Hoists supplies American-made bridge cranes, wire rope hoists, and chain hoists engineered for continuous 24/7 operation. Specialists help buyers match voltage, phase, and duty class to their facility before the order ships.
A good supplier relationship should include:
- Clear technical documentation on voltage and phase options
- Direct access to specialists for custom configuration questions
- Support confirming electrical specs before purchase, not after installation problems surface
Frequently Asked Questions
What is a power source for overhead and gantry cranes?
Overhead and gantry cranes typically draw power through either insulated conductor bar systems or festoon (C-track) cable systems. The choice depends on runway length, crane type, and whether multiple cranes share the same runway.
How far does a crane need to be from a power line?
OSHA clearance requirements scale with line voltage, ranging from 10 feet for lines up to 50 kV to 25 feet for lines up to 500 kV. Site-specific engineering review is required for exact figures based on your facility.
What are the OSHA requirements for overhead cranes?
OSHA 1910.179 references ASME B30.2 for detailed standards on inspection, maintenance, operator training, and electrical safety. Consult OSHA's official standard and current ASME B30.2 edition for full compliance details.
How much can a 5-ton crane lift?
A US 5-ton crane is rated for 10,000 lbs of safe working load under standard operating conditions. This reflects the US short-ton standard used across most manufacturer specifications, not the metric tonne.
What voltage do most US overhead cranes use?
Most US industrial cranes run on 460V (sometimes labeled 480V), three-phase, 60Hz power. Lighter-duty models, including many chain hoists, often offer 230V as an alternative option.
Do larger tonnage cranes always need more power?
Not necessarily. Power scales with tonnage, but span, lift height, travel speed, and duty class all factor in. A high-duty-cycle 5-ton crane can draw more power than an infrequently used 10-ton unit.
