A 2023 ABB survey of over 3,200 plant-maintenance leaders found that 69% experienced unplanned outages at least monthly, at a median cost of roughly $125,000 per hour. Material handling delays are a common culprit behind those numbers.
Electric Overhead Traveling (EOT) cranes solve this by lifting and moving heavy loads through the air, freeing floor space instead of consuming it. Most manufacturing facilities run one, yet few teams outside maintenance fully understand how the system works or when a different crane type fits better.
This guide covers what an EOT crane is, how it operates, the difference between single and double girder designs, where these systems earn their keep, and how to choose the right one for your facility.
Key Takeaways
- EOT cranes move loads three ways—hoist, trolley travel, and bridge travel—on runway-mounted electric drives
- Single girder designs suit lighter, shorter-span jobs; double girder designs scale to heavier capacities and longer runs
- Capacity, span, duty class, and power delivery method determine the right crane for your floor
- Heavy-duty hoists built for continuous operation, like those from American Hoists, cut unplanned downtime risk
What Is an Electric Overhead Traveling Crane?
An EOT crane is a bridge-type lifting system that travels on elevated runway rails mounted above the work area. Rather than rolling loads across the floor, it carries them overhead, clearing aisles, dock doors, and workstations for everything else happening on the shop floor.
The name explains the mechanism:
- Electric: motor-driven hoisting and travel, not manual chain-pull operation
- Overhead: the bridge structure runs above the work zone, not through it
- Traveling: the entire bridge moves along fixed rails, covering the runway's full length
Industry terminology varies by region and vendor. You'll hear the same equipment called a bridge crane or an overhead traveling crane. All three names describe the same basic architecture: a bridge spanning two runway rails, with a trolley and hoist riding along it.
How EOT Cranes Evolved for Modern Industry
Electric overhead cranes emerged in the late 19th century and remain one of the most common material handling systems in industrial facilities. Today's EOT cranes typically include:
- VFD (variable frequency drive) control for smooth acceleration, deceleration, and precise load positioning
- Radio remote operation, letting the operator move freely instead of following a pendant cable
- Cab-operated configurations for high-traffic, high-tonnage applications like steel mills
Steel, automotive, and general manufacturing sectors rely on these systems daily, whether for handling coils, staging finished assemblies, or moving raw material into production.
EOT Crane vs. Gantry Crane vs. Mobile Crane
Not every overhead lifting system is an EOT crane. OSHA's crane standard draws a clear structural line: an overhead crane's bridge travels along a fixed runway attached to the building itself. That fixed infrastructure separates it from the alternatives:
- Gantry cranes use their own floor-mounted support legs instead of building-mounted rails, better suited to outdoor yards or spaces without structural steel rated for a runway
- Mobile cranes are self-propelled boom equipment with no fixed infrastructure at all, built for relocating between job sites
EOT cranes make sense for high-frequency, repeatable indoor lifting. Gantry and mobile cranes fit temporary, outdoor, or one-off jobs better.
How Do EOT Cranes Work? Components and Power Delivery

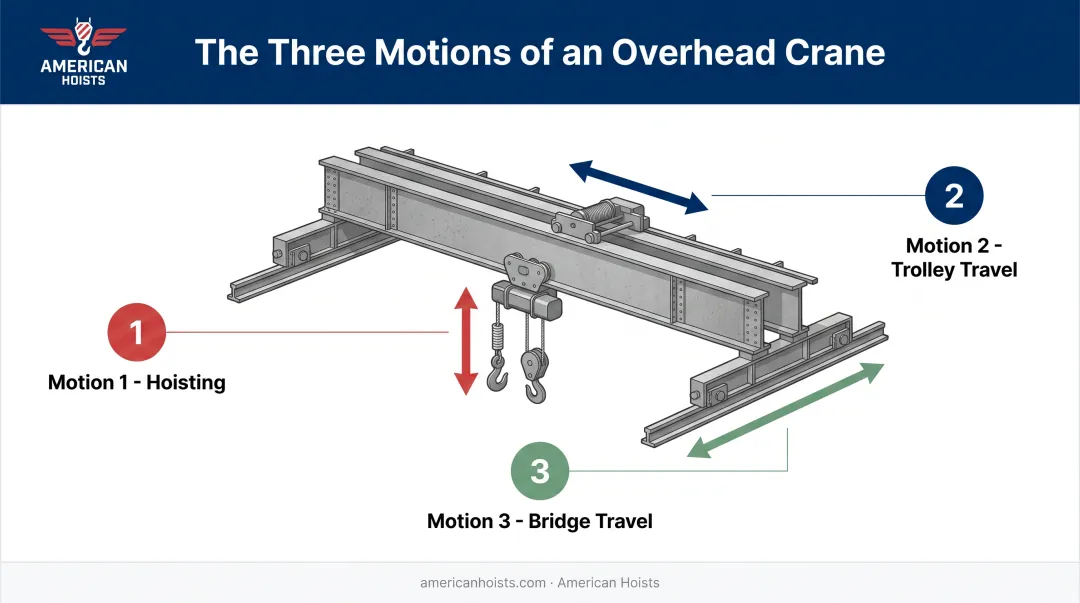

An EOT crane coordinates three separate movements to place a load anywhere within its coverage area:
- Hoisting: vertical lift and lower, via wire rope or chain hoist
- Trolley travel: lateral movement across the bridge girder
- Bridge travel: longitudinal movement along the runway, parallel to the building
Together, these three motions let one operator reach almost any point on the floor without repositioning the load by hand.
Structural Components
Four elements make up the core system:
- Bridge girder(s): the horizontal structure spanning the runway, carrying the trolley
- End carriages: connect the girder to the wheels that ride the runway rail
- Hoist and trolley: the lifting mechanism and its traveling carriage
- Electrical control system: governs motor speed, direction, and safety interlocks
Power Delivery Methods
Power reaches a moving bridge through one of three systems:
- Conductor bar systems: rigid rail-mounted conductors, common where multiple bridges share one runway
- Cable festoons: cables managed along a track, suited to lower headroom applications
- Cable reels: motor-driven reels that extend and retract cable as the crane travels
Which one fits depends on ceiling clearance, how many cranes share the runway, and the surrounding environment.
Built-In Safety Systems
OSHA's crane standard requires several baseline protective features:
- A self-setting holding brake that engages automatically when power cuts out
- Upper-limit testing at the start of each shift
- A lockable runway-conductor disconnect
Most EOT cranes also carry:
- Overload limiters that flag or prevent lifts beyond rated capacity
- Upper and lower hoist limit switches
- Travel limit switches on both bridge and trolley motion
- Emergency stop controls, independent of normal operating switches
The hoist absorbs more operational stress than any other component on the crane. It cycles through lifting and braking on every lift, so continuous-duty ratings matter as much as any other spec on the machine.
American Hoists' Harrington NER chain hoists and Starke SMW wire rope hoists both carry an ASME H4 duty classification built for sustained industrial cycling. Check that rating before committing to a hoist that will run multiple shifts a day.

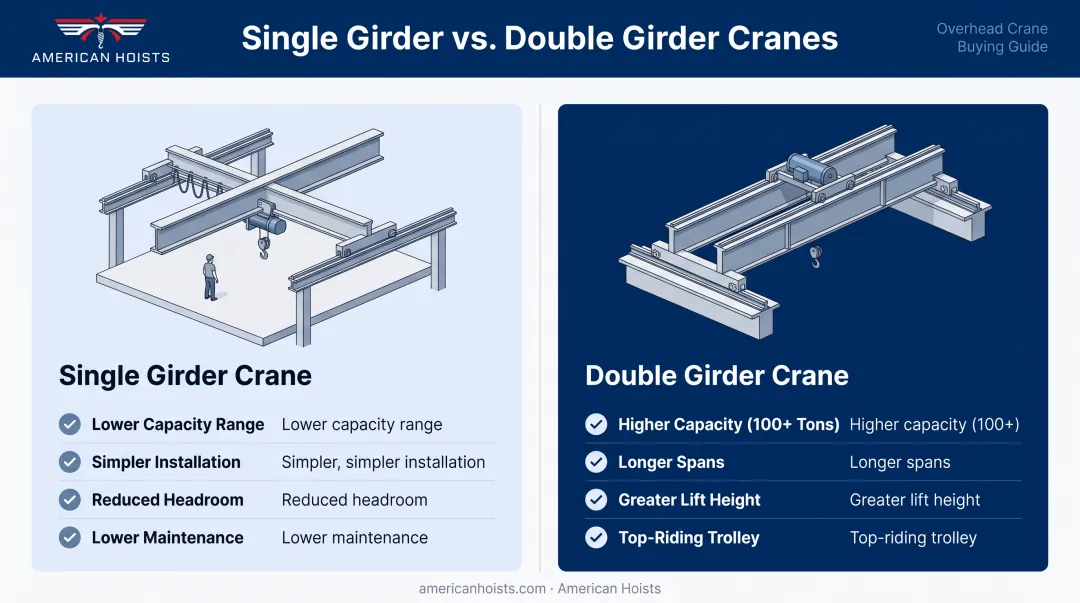

Types of EOT Cranes: Single Girder vs. Double Girder
Girder count is the first fork in the decision tree, and it drives nearly every other spec that follows.
Single Girder EOT Cranes
A single girder crane uses one main girder, with the trolley and hoist riding underneath it. Advantages include:
- Simpler installation, fewer structural demands on the building
- Lower maintenance overhead, with fewer moving structural parts
- A natural fit for lighter capacity, shorter-span applications
Because the trolley hangs below the girder, headroom is reduced compared to a double girder design of the same span.
Double Girder EOT Cranes
A double girder crane uses two parallel girders, with the trolley riding on top instead of underneath. This layout supports:
- Higher load capacities, with heavy industrial installations regularly exceeding 100 tons per crane
- Longer spans across wider runways
- Greater usable lifting height, since the hook can travel closer to the top of the girder rather than being limited by underhung clearance
Exact capacity breakpoints vary by manufacturer, span, and duty class, so treat any single tonnage cutoff as a reference point, not a hard rule.
Other Configurations Worth Knowing
Two additional variants solve space or structural constraints:
- Suspended/underhung cranes: the bridge rides on the lower flange of roof- or rafter-mounted runway beams, avoiding floor-mounted support columns entirely
- Wall-mounted cranes: travel horizontally along a wall-mounted track, often serving a single workstation or supplementing a larger overhead crane in the same bay
American Hoists stocks crane kits along the same lines: underhung kits from 1 to 10 tons (20- to 80-foot spans) and top-running kits from 2 to 20 tons (spans up to 84 feet), each paired with a chain or wire rope hoist matched to the job.
Where Are EOT Cranes Used? Common Industry Applications
Industrial facilities depend on EOT cranes wherever heavy loads need to move repeatedly, precisely, and without tying up floor space.
Core applications include:
- Manufacturing plants: moving raw material to production lines and finished goods to shipping
- Steel mills: handling coils, billets, and rolled product, often with cranes rated 20 to 50 tons for this exact work
- Warehouses and distribution centers: palletized and bulk load movement between storage and staging areas
- Automotive assembly: positioning engines, body components, and sub-assemblies along the line
- Power plant maintenance bays: lifting turbines, generators, and rotor assemblies during overhaul
American manufacturers in heavy-duty fabrication, factories, and warehouses rely on EOT cranes to keep lines moving. That means less manual handling and fewer forklift trips through congested aisles.
The economics favor overhead handling wherever lifts repeat throughout a shift. A forklift or mobile crane still works well for occasional or outdoor moves. Repetitive, high-frequency indoor lifting is where a fixed overhead system earns its keep. You get less aisle traffic, less staging time, and a load path that doesn't compete with foot traffic or other equipment.

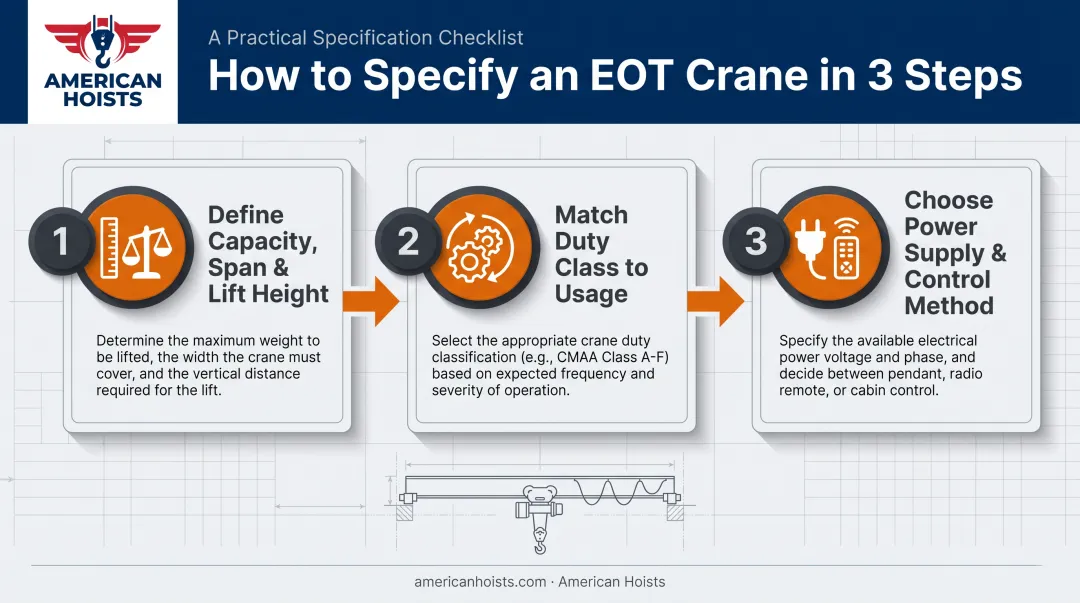

How to Choose the Right EOT Crane for Your Facility
Specifying an EOT crane comes down to four decisions made in the right order. Get them wrong, and you'll either overpay for capacity you never use or undersize a system that can't keep up.
Define Capacity, Span, and Lift Height First
Start with the numbers that don't change later:
- Lifting capacity: include the load plus any rigging or below-the-hook device weight, and build in a margin for future production needs
- Span: the runway width the bridge must cover
- Lift height: set by building headroom, not by hoist specs alone
Match Duty Class to Actual Usage
Duty classification systems, including FEM, ISO, and CMAA, rate equipment based on how often and how hard it actually works, not just peak capacity. ISO 4301-1 classifies cranes and mechanisms using total working cycles, load spectrum, and average load displacement over the crane's service life.
Buy for a light duty class and run it three shifts a day, and premature wear shows up fast: worn brakes, stretched wire rope, and motor failures well ahead of schedule.
Choose Power Supply and Control Method
Two more decisions round out the spec:
- Power delivery: confirm voltage and phase (230V-3-60 and 460V-3-60 are common) and choose conductor bar or festoon cable management
- Control method: pendant for most fixed-position work; cab or radio remote for high-traffic, high-tonnage, or limited-visibility bays
Where American Hoists Fits
Once those four specs are locked in, sourcing matters just as much as the engineering. American Hoists supplies configurable EOT-style crane kits (top-running and underhung) in capacities from 1 to 20 tons and spans up to 84 feet, paired with Harrington chain hoists or Harrington and Starke wire rope hoists built for continuous industrial cycling.
For facilities teams, that combination means:
- Specialist confirms capacity, span, and duty before the order ships
- Configure and price kits online instead of waiting weeks for a standard quote
- Crane kits typically ship in 10 days; select chain hoists ship even faster
- Reach a hoist expert anytime production can't wait for business hours
For a non-standard span, capacity, or control setup, American Hoists' custom quote process puts a specialist on the specification before any hardware ships.
Frequently Asked Questions
Do electric cranes exist?
Yes. Electric overhead cranes have been part of industrial material handling since the late 1800s, and they remain one of the most common lifting systems in factories and warehouses today.
What is the meaning of EOT crane?
EOT stands for Electric Overhead Traveling: a bridge crane that runs on electric-powered motors across elevated runway rails fixed to the building structure.
What is the difference between an EOT crane and a gantry crane?
An EOT crane's bridge rides on rails attached to the building itself. A gantry crane carries its own floor-mounted support legs, making it a better fit for outdoor space or buildings without a rated runway structure.
How much weight can an EOT crane lift?
Capacity varies widely by design. Light-duty single girder systems often start in the 1–5 ton range, while heavy double girder industrial cranes can scale into the hundreds of tons depending on the application.
How long do EOT cranes typically last?
Structural components can run for decades with proper maintenance, since service life tracks with usage cycles rather than calendar age. Wire ropes, brakes, and electrical parts wear faster and need periodic replacement regardless of the structure's age.
Can EOT cranes be customized for specific facilities?
Yes. Span, capacity, control method, and protection level are typically engineered around a facility's building dimensions, power supply, and operating environment.
