Bulk cargo volumes fluctuate, but the pressure to move loose material efficiently hasn't eased. Liebherr's field studies found grabs often run at only 70% of their rated capacity, with some sites falling below that. That gap between what a grab can lift and what it actually lifts often comes down to understanding how the thing works in the first place.
Most buyers know grab cranes pick up loose material. Fewer understand the mechanics behind the grip, lift, and release cycle that determines safety and output. This guide breaks down each stage.
TL;DR
- Grab cranes use a bucket attachment (the grab) to pick up, move, and release bulk or loose materials
- Operation follows five stages: positioning, grip activation, lifting, transport, and release
- Mechanical rope systems or hydraulic/electric drives power the grab
- Ports, steel mills, recycling yards, and mines rely on them for bulk handling
- Wire rope hoists and bridge cranes often pair with grab systems in these facilities
What Is A Grab Crane?
A grab crane is a crane fitted with a grab bucket attachment that automatically picks up and releases bulk, loose, or granular materials—no manual labor required.
Before grab technology matured, facilities relied on slower, more labor-intensive methods to move loose material. A crane with a purpose-built grab attachment handles that same material faster and with far less exposure to injury.
A grab crane is not the same as:
- A standard hook crane — lifts solid, pre-slung loads (steel beams, machinery, palletized goods)
- A magnetic crane — handles flat ferrous sheet metal using magnetic force, not mechanical jaws
Even with rising automation in material handling, grabs remain the most efficient tool for transferring loose or irregular bulk material. Nothing else matches the reach, speed, and volume-per-cycle of a well-matched grab.

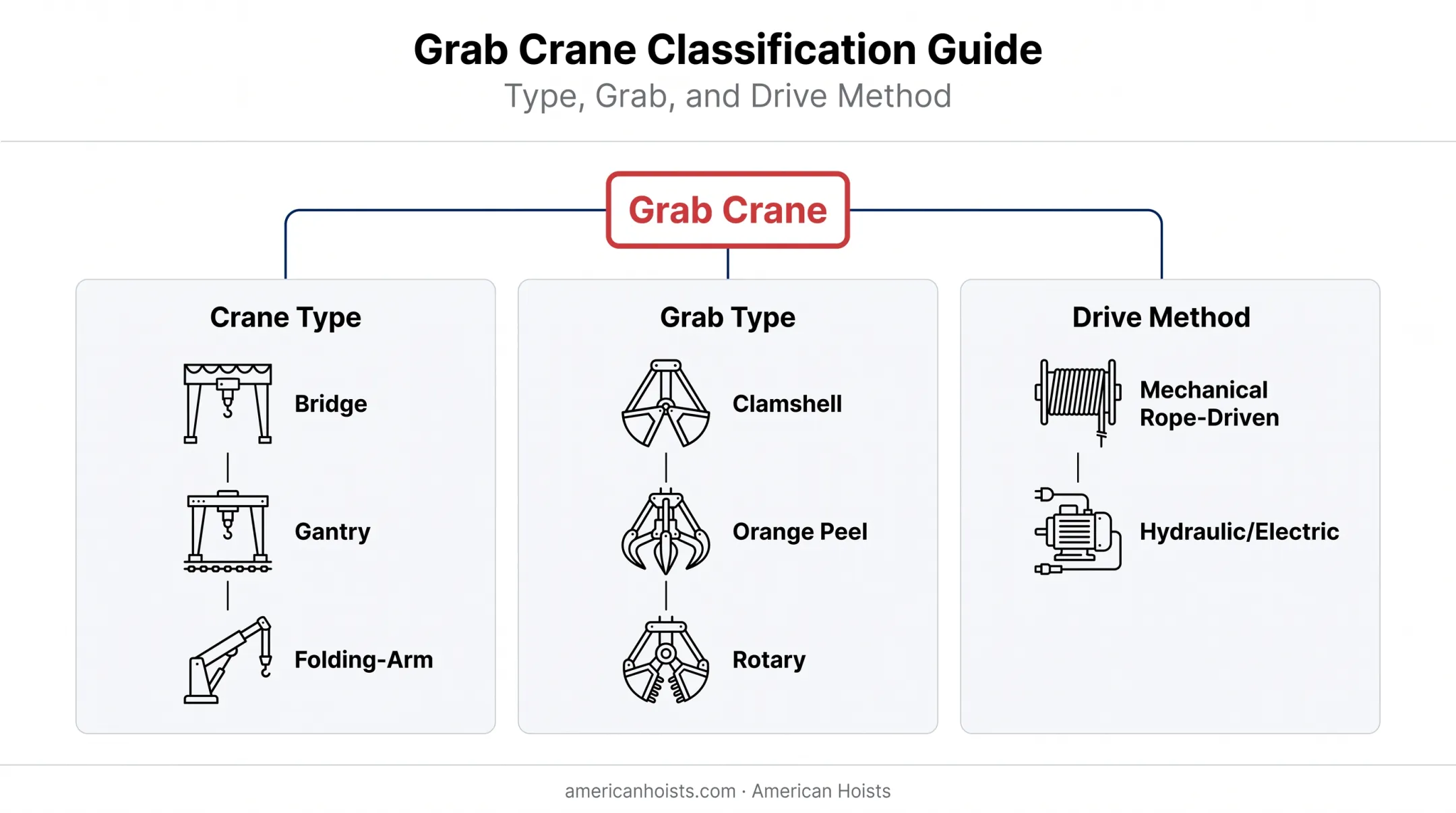

Types of Grab Cranes
By crane type:
- Bridge/overhead grab crane — runs along an elevated rail system, common in enclosed facilities and ports
- Gantry grab crane — supported by legs running on ground-level rails, favored for open-air yards
- Folding-arm (knuckle) grab crane — articulated arm design, useful in tighter or variable-reach applications
By grab type:
- Clamshell grab — two hinged shells that close around loose, granular material like coal or gravel
- Orange peel grab — multiple independently-moving claws (typically 6 or 8) built for digging into dense or irregular material like scrap, per Nemag's product specifications
- Rotary grab — used when the load needs rotational positioning during the pick or place cycle
By drive method:
- Mechanical (rope-driven) — uses 2-rope or 4-rope systems to open and close the jaws
- Hydraulic or electric — uses cylinders or motors to control jaw movement directly
The drive method changes how the core gripping operation physically works—and that mechanism is what the next section breaks down.
How Does A Grab Crane Work?

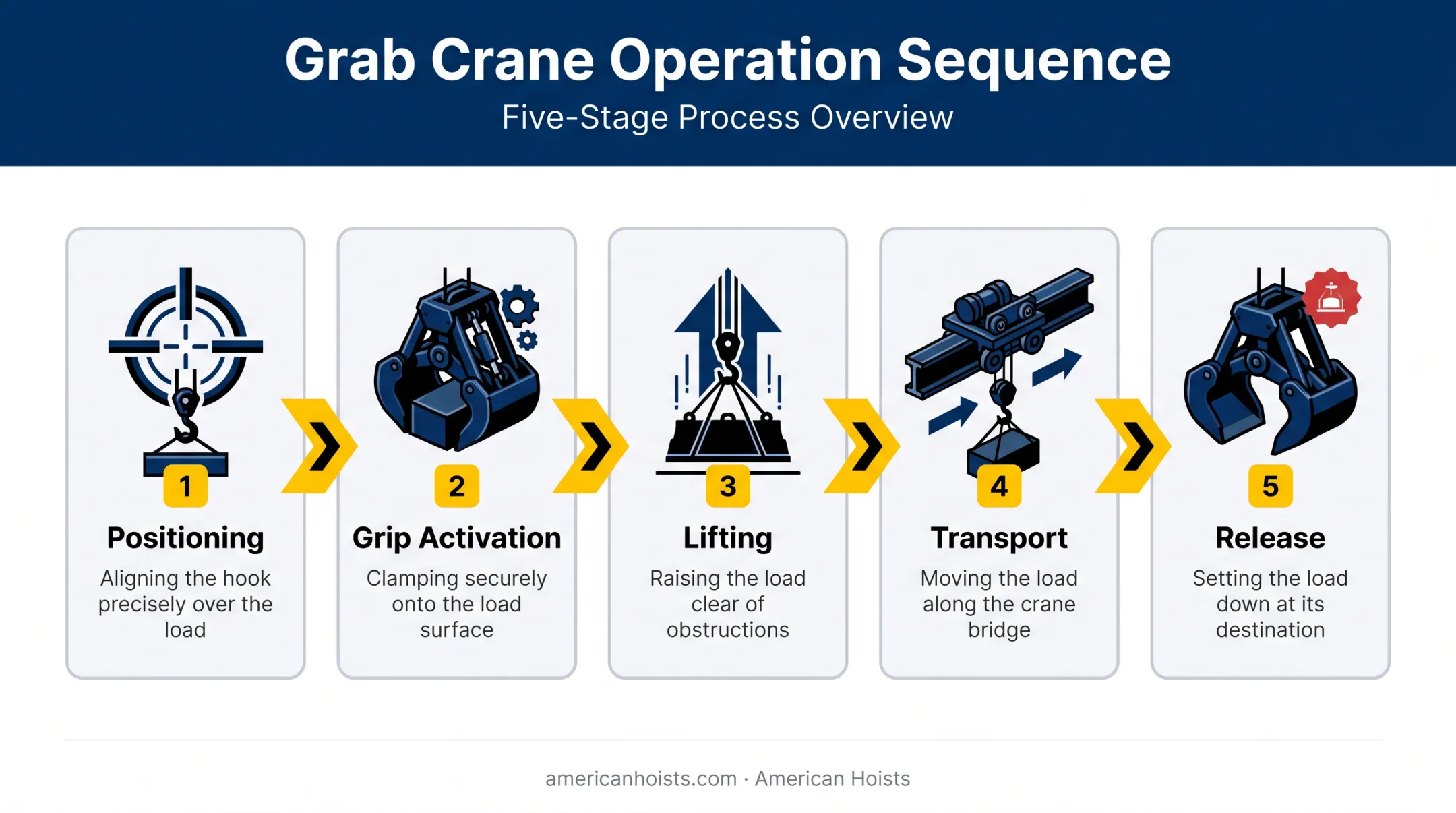

Grab crane operation follows a defined sequence: positioning, gripping, lifting, transporting, and releasing. Each stage affects cycle speed and safety. Skip a step, or execute it poorly, and you lose material per cycle or risk a dropped load.
Positioning and Initiation
The operator maneuvers the bridge or trolley, then lowers the grab directly above the material pile. Alignment relies on visual judgment or, in newer systems, sensor-based guidance.
Initiation is manual in most conventional grabs. Modern systems increasingly use laser or weight sensors for semi-automated positioning, according to ABB's grab ship unloader automation documentation, which covers sway control and grab-path optimization.
Poor alignment is the first bottleneck in the entire cycle. An uneven grip means:
- Reduced material captured per cycle
- Increased spillage risk during lift-off
- More cycles needed to move the same volume
Core Gripping and Lifting Operation
Once the grab is aligned, drive type decides how the jaws actually close.
Rope-driven grabs use winding drums that pull support and closing ropes, forcing the jaws shut around the material below. Hydraulic or electric grabs skip the rope system entirely, using cylinders or motors to close the jaws directly.
In both cases, the jaws trap the load, then the hoisting motor lifts the filled grab clear of the pile.
Grab type and closing force determine how much material gets captured per cycle:
- Orange peel jaws dig into irregular scrap that a clamshell would slide past
- Clamshell shells handle uniform granular material (coal, sand, gravel) efficiently
- Closing force directly affects fill rate — insufficient force leaves gaps, dropping capacity well below rated tonnage
Control and Adjustment
Once the grab clears the pile, operators fine-tune grip strength and load balance mid-lift. This prevents spillage and reduces swinging during transport.
Built-in protections support this stage:
- Overload limits that flag or prevent excessive loading
- Lifting and travel limit switches, tested at the start of each shift per OSHA 1910.179
- Collision alarms and warning signals during bridge travel
Unbalanced or overloaded grabs remain a leading cause of dropped loads. This stage exists specifically to catch problems before they become incidents.
Transport and Release
The loaded grab travels via trolley or crab movement along the bridge or gantry rail toward its destination, whether that's a hopper, conveyor, or storage yard.
At the target location, the operator reopens the jaws, either through rope release or hydraulic/electric control, dropping the material precisely where needed.
Accurate placement matters downstream. A grab that consistently misses the target hopper creates re-handling work and interrupts conveyor flow. Precision at this final stage keeps the entire processing line moving without interruption.
Where Are Grab Cranes Used?
Grab cranes fit high-volume, continuous-duty environments handling loose or irregular materials, not uniform packaged goods.
Typical applications:
- Ports and terminals — loading and unloading bulk cargo like coal, iron ore, and aggregates directly from vessel holds
- Steel mills — feeding raw material into furnaces
- Recycling yards — sorting scrap metal, where orange peel grabs handle irregular shapes better than clamshells
Ports tend to favor bridge grab cranes for vessel unloading, while mining operations often run gantry grab cranes across open coal or ore yards. The right fit depends on site layout as much as material type.

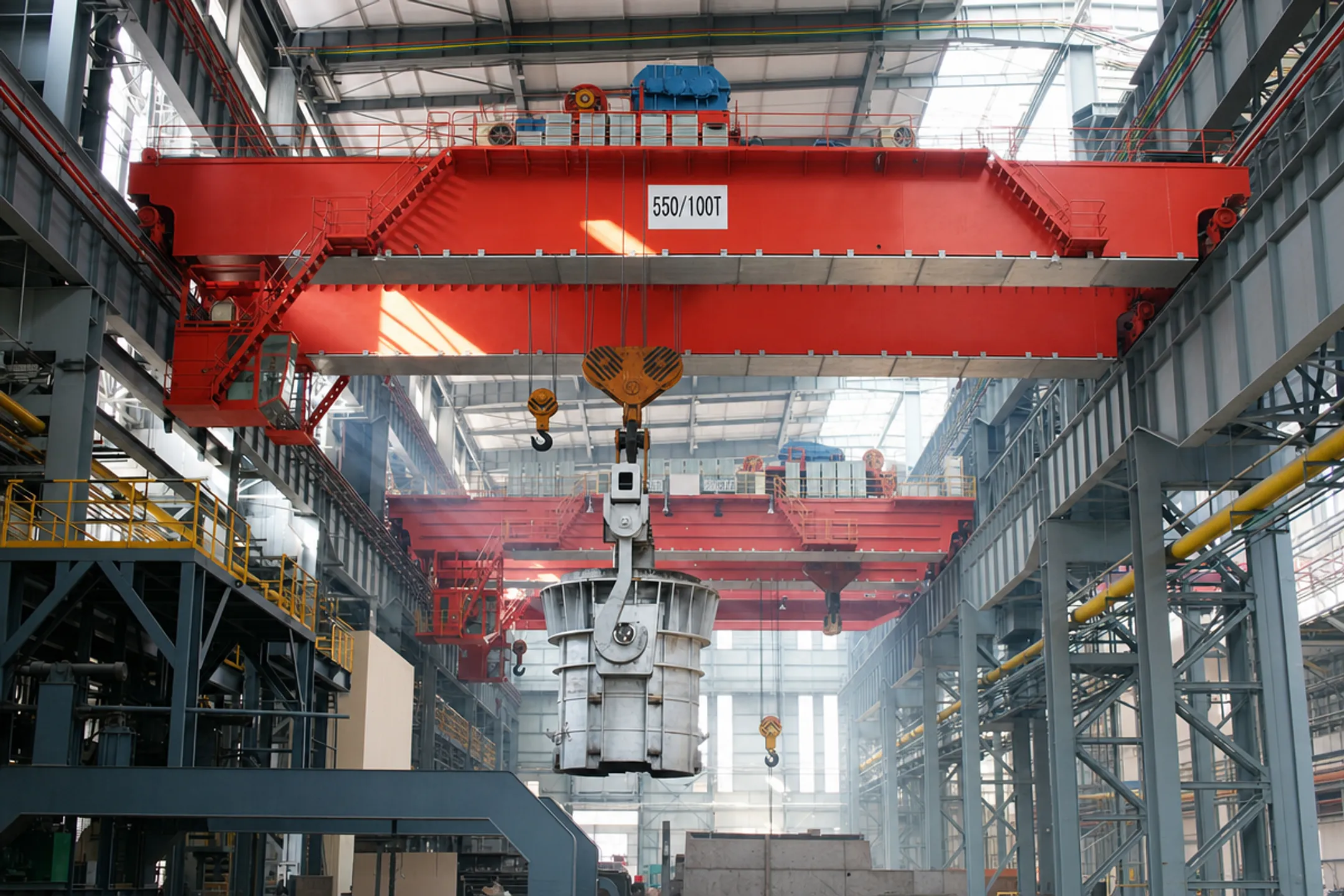

Duty cycle matters here. Facilities running grabs around the clock need supporting equipment rated for that load. High-cycle-rate environments call for hoists and bridge cranes built for heavy, near-continuous service. American Hoists supplies fully assembled wire rope bridge cranes rated for steel manufacturing and fabrication duty in these settings.
Matching the Right Setup to Your Material
Grab crane efficiency depends on four coordinated steps:
- Position the grab correctly over the load
- Grip with the right force for the material
- Lift cleanly without spillage or swing
- Release with precision at the drop point
Matching grab type and drive method to your material—whether loose gravel or twisted scrap—reduces downtime and cuts safety risk. Get that match wrong, and you'll fight capacity losses on every cycle.
Frequently Asked Questions
What are the different types of grab cranes?
Grab cranes fall into crane-type categories (bridge, gantry, folding-arm) and grab-type categories (clamshell, orange peel, rotary). The right combination depends on your site layout and the material being handled.
How is a grab crane different from a regular overhead crane?
A grab crane uses an opening and closing bucket attachment to handle loose, bulk materials. A standard overhead crane uses a hook to lift solid, pre-slung loads like beams or machinery.
What materials can a grab crane handle?
Grab cranes handle bulk and loose materials including coal, iron ore, scrap metal, sand, gravel, aggregates, and logs. The grab type used often depends on whether the material is granular or irregular.
Are grab cranes automated?
Most grab cranes remain operator-controlled. However, systems increasingly use laser and weight sensors for semi-automated positioning, improving fill rates and cycle efficiency.
What safety features do grab cranes have?
Standard features include overload limits, lifting and travel limit switches (tested each shift), and collision alarms. OSHA 1910.179 requires rated-load markings and warning signals on power-traveling cranes.
How do you maintain a grab crane?
Maintenance includes routine lubrication, regular wear inspection on ropes and jaws, and prompt reporting of faults. OSHA requires rope inspection at least monthly, with more frequent checks in high-cycle environments.
