Choosing wrong isn't just inconvenient. It affects your installation cost, floor space, portability, and how much downtime you eat over the next decade. This guide breaks down the real differences so you can match the right crane to your facility, not just your budget.
TL;DR
- Overhead cranes mount to building runways for maximum strength and permanent, heavy-duty lifting
- Gantry cranes use free-standing legs, making them portable and ideal for temporary or outdoor jobs
- Cost, structural support, and lifting capacity are the main deciding factors
- Both pair with wire rope or chain hoists depending on load and duty cycle
- Your facility's structure and workflow, not personal preference, should drive the decision

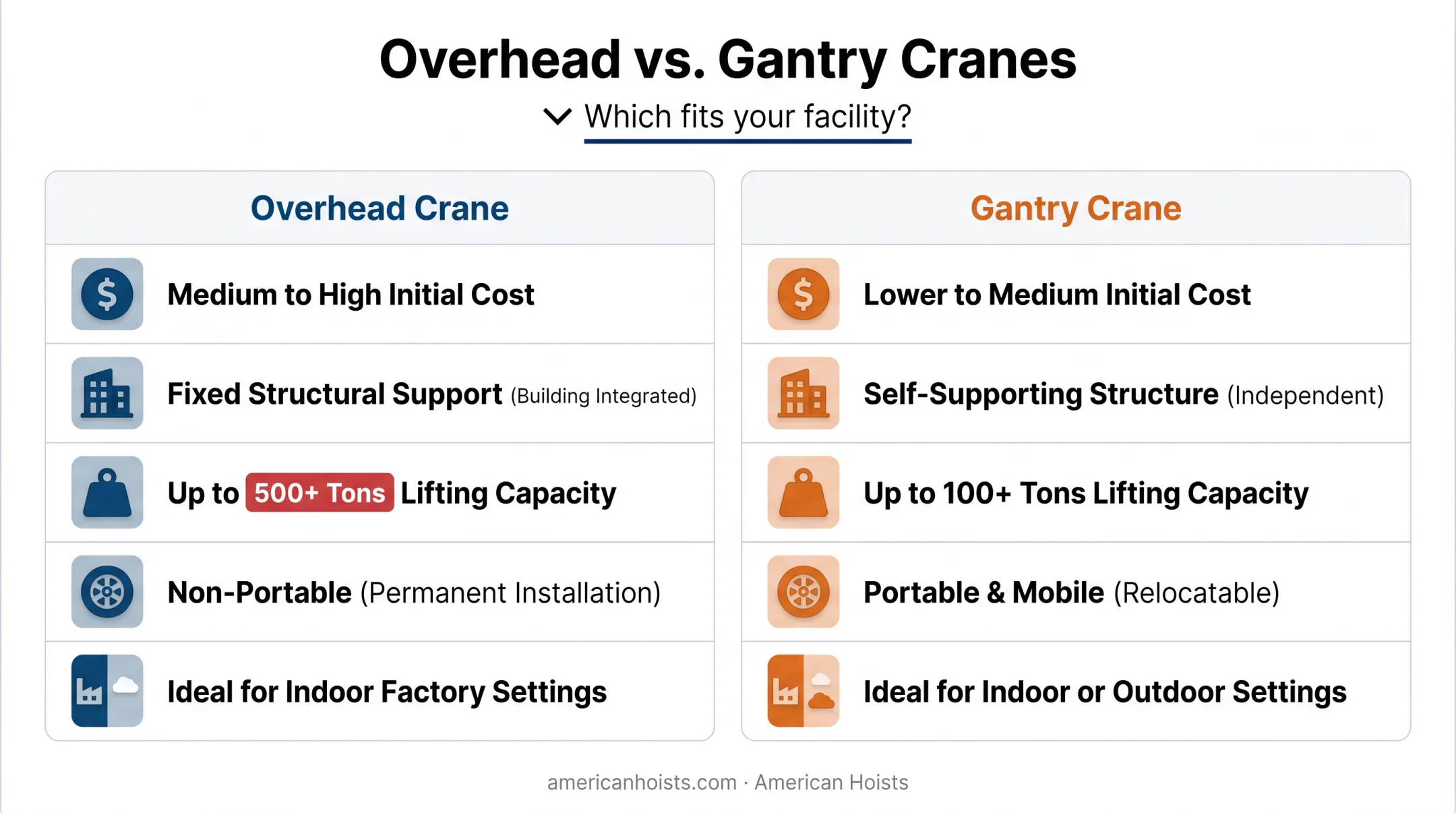

Overhead Crane vs Gantry Crane: Quick Comparison
Use this side-by-side view to match crane type to your building, capacity, and budget before you compare full specs.
| Factor | Overhead Crane | Gantry Crane |
|---|---|---|
| Cost | Kits about $19,000–$25,500; assembled systems about $15,000–$50,000+ | Portable units usually cost less upfront; industrial gantries price up with span and capacity |
| Structural Support | Needs a building runway or overhead beam | Free-standing on wheels or rails; no building support |
| Lifting Capacity | Single girder to 40 tons; double girder to 80 tons (Konecranes) | Portable about 5 tons; industrial gantries to about 30 tons (Konecranes) |
| Portability | Fixed to the runway; effectively permanent | Built to relocate; some models can move under load |
| Ideal Setting | Indoor, continuous heavy-duty production | Outdoor, temporary, or tight-footprint work |
What Is an Overhead Crane?
An overhead crane, sometimes called a bridge crane, mounts to a building's structural supports and runs along fixed runways. OSHA 1910.179 defines it as a movable bridge carrying a hoisting mechanism that travels on an overhead fixed runway structure. That runway connection is what gives overhead cranes their strength advantage over any free-standing alternative.
For manufacturers running continuous production, that permanence pays off. Overhead cranes deliver:
- Higher lifting capacity than comparable gantry systems
- Precise, repeatable positioning for repetitive material moves
- Reliability suited to 24/7 operation without structural flex
Single Girder vs Double Girder
Single-girder cranes are lighter and more compact, typically handling up to 40 tons with a normal-headroom trolley. Double-girder systems step up capacity further, up to 80 tons in some configurations, and are the go-to when you need a service platform or extra lift height (Konecranes).
For mid-capacity fixed installations, American Hoists supplies fully assembled Harrington HBC Series bridge cranes for continuous industrial operation, rated 1/8 to 10 tons, with bridge spans from 10 to 60 feet and top-running or underhung configurations. They ship in 8-10 weeks, versus lead times that can stretch up to 40 weeks elsewhere.
Use Cases of Overhead Cranes
Overhead cranes dominate where production never stops:
- Automotive manufacturing — moving heavy components between assembly stations
- Steel production — handling raw material and finished stock
- Heavy machining — positioning workpieces with precision
At an Ohio manufacturing facility, eight 30-ton overhead cranes ran 24/7 with zero crane breakdowns and no lost production time across a full year (Konecranes case study). That uptime record is why continuous-operation plants choose fixed overhead systems over temporary alternatives.
What Is a Gantry Crane?
A gantry crane is a self-supporting structure. Instead of hanging from a building's runway, it stands on its own vertical legs, often mounted on wheels or rails. OSHA classifies it as a crane whose bridge is rigidly supported on two or more legs running on fixed rails or another surface.
That leg-based design changes how and where you can deploy one. Core benefits include:
- No building structure required for support
- Faster, easier installation than a runway-mounted system
- Mobility that lets some units relocate with a load still suspended

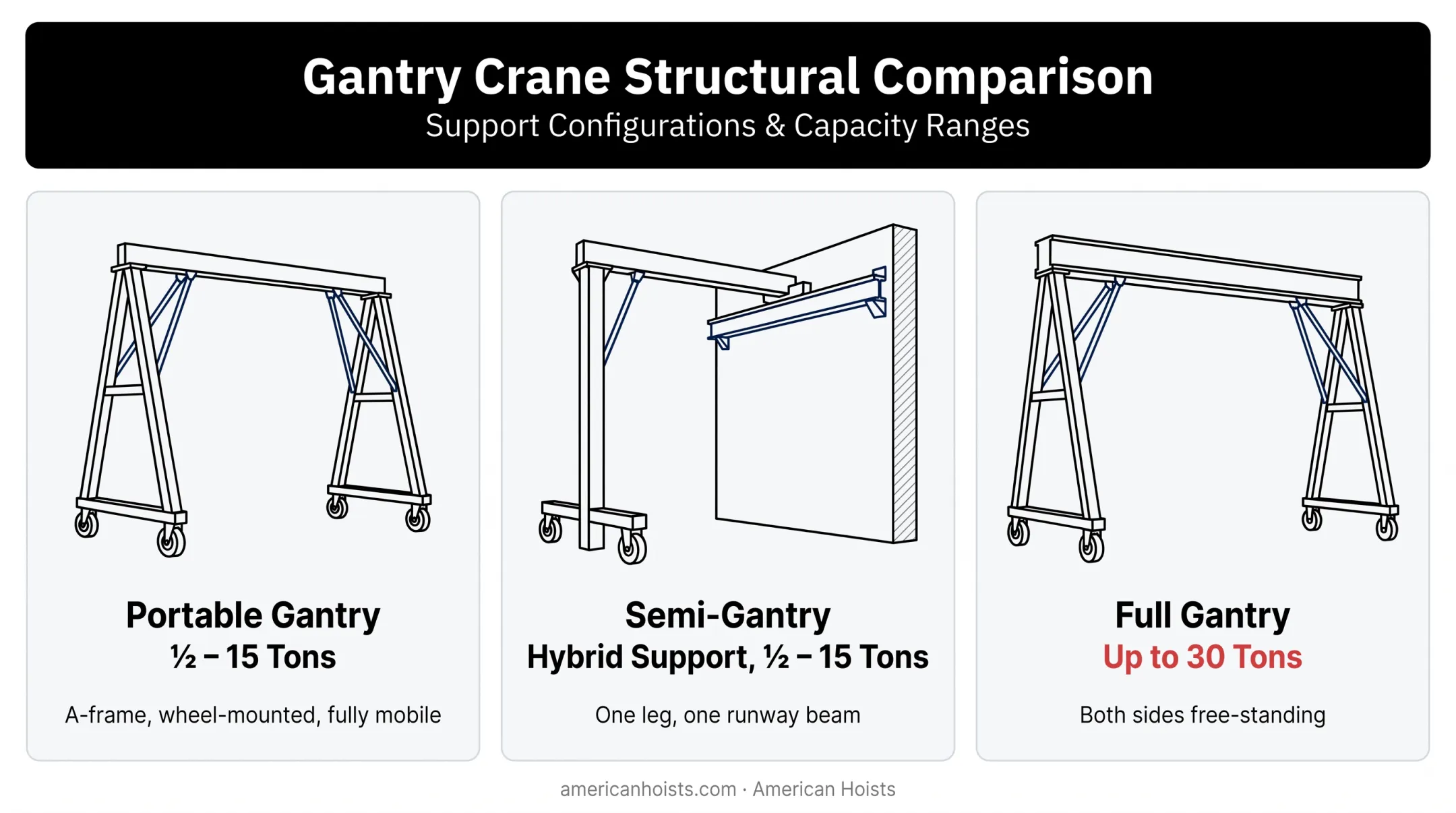

Portable, Semi, and Full Gantry Variations
- Portable gantry cranes: Lightweight, A-frame designs. Wallace's portable line spans 400+ models from ½ to 15 tons (Wallace)
- Semi-gantry cranes: One side rides a runway beam, the other stands on a leg—a hybrid for buildings with partial structural support
- Full gantry cranes: Both sides free-standing, with industrial ranges reaching up to 30 tons (Konecranes)

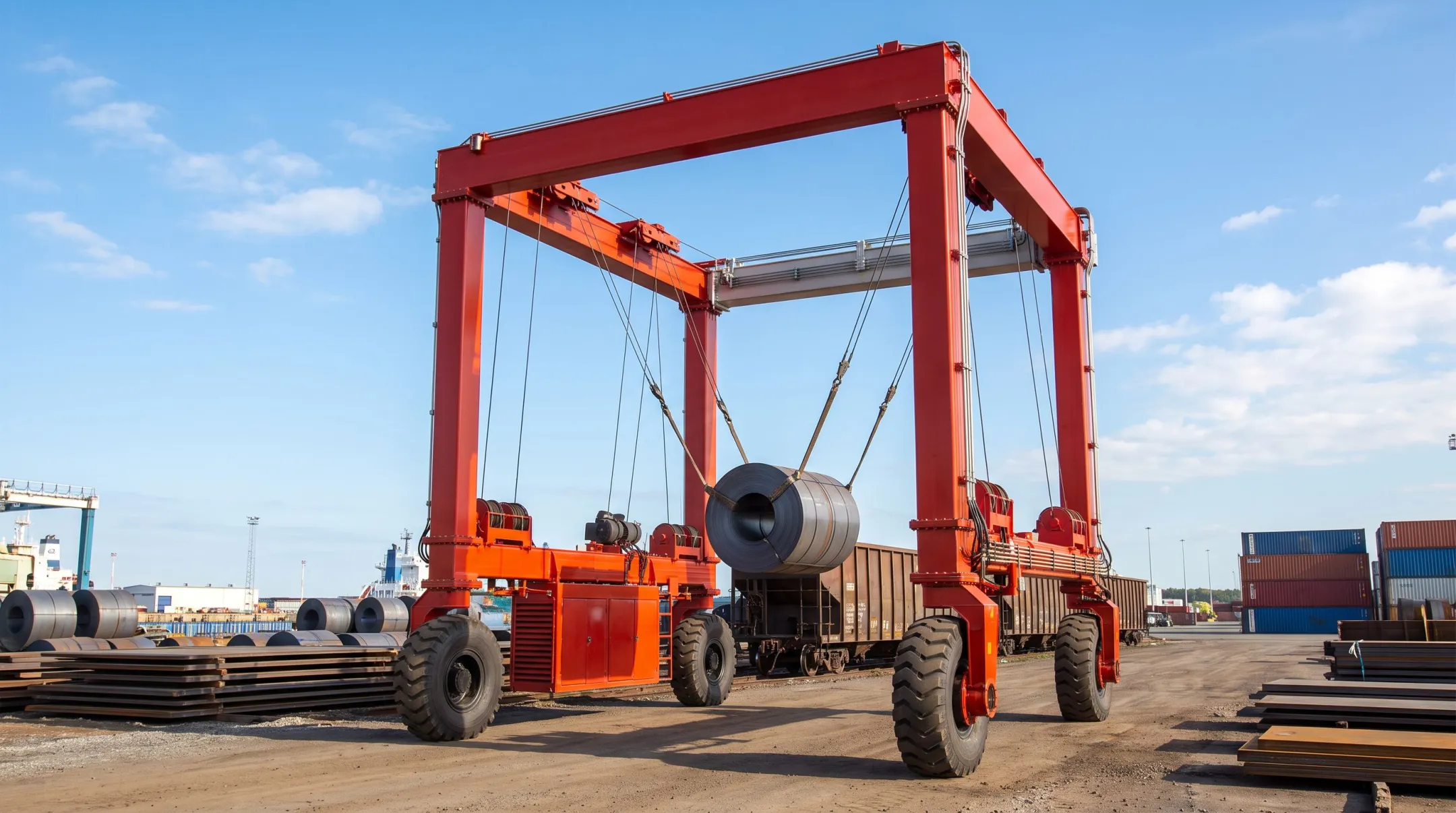

Use Cases of Gantry Cranes
Gantry cranes fit outdoor and multi-site work:
- Shipping ports — Port of Savannah hit 220 boxes per hour with six cranes in one 30-hour vessel call (Georgia Ports Authority)
- Steelyards — handling large stock without permanent structural investment
- Construction sites — where equipment needs to move as the job progresses
Maintenance bays and automotive garages also rely on portable gantries for quick, temporary lifts between locations.
Overhead Crane vs Gantry Crane: Which Is Better?
Neither wins outright. The right pick depends on four factors:
- Available floor space — gantry cranes need clearance for legs and wheels; overhead cranes only need runway height
- Structural capacity of your building — if your building can't support a runway load, a gantry sidesteps that problem entirely
- Load weight — heavier, continuous loads favor overhead systems built for higher capacity
- Frequency of use — daily, high-volume lifting justifies a permanent overhead installation; occasional or seasonal work fits a gantry
Choose an overhead crane for fixed, high-capacity production lines running around the clock. Choose a gantry crane for temporary, outdoor, or multi-location work where mobility matters more than raw lifting power.
Real World Example: Choosing the Right Crane
Picture a fabrication shop running on aging, underpowered lifting equipment because the building's structural supports were never rated for a heavy-duty runway. Every large lift became a bottleneck. Operators worked around capacity limits, production slowed, and unplanned downtime crept into the schedule.
The trigger for change is usually the same: a load that the current equipment simply can't handle safely, or a maintenance failure that finally forces the decision.
Once the facility invests in an engineering assessment and installs a properly rated overhead crane matched to actual building capacity, the difference shows up fast: fewer workarounds, faster material moves, and equipment rated for continuous duty instead of constant strain.
The takeaway: match the crane to your building, not the other way around. Guessing at capacity or forcing a gantry into a job that needs a runway-mounted system usually costs more in downtime than it saves in upfront price.
If you're not sure which configuration fits your facility, request a custom hoist and crane quote from American Hoists. Submit your specs and our team will help you land on the right fit, no guesswork required.
Conclusion
Overhead cranes and gantry cranes both move heavy loads, but they're built for different jobs. Overhead systems deliver maximum strength and precision for permanent, high-volume indoor production. Gantry cranes trade some capacity for portability, which makes them a stronger fit outdoors, on temporary sites, or anywhere a building-mounted runway isn't practical.
Facility structure, mobility needs, and day-to-day load profile should drive the decision. Choose the configuration that matches those constraints and you protect uptime while keeping production efficient long after install day.
Frequently Asked Questions
What is the difference between an overhead crane and a gantry crane?
Overhead cranes mount to a building's structural supports and run on fixed runways for maximum lifting capacity. Gantry cranes use free-standing legs instead, trading some capacity for portability and easier installation.
How much can a gantry crane lift?
Portable gantry cranes typically handle 5–15 tons depending on the model, while full industrial gantry systems can reach up to 30 tons (Konecranes).
What is the purpose of a gantry crane?
Gantry cranes provide flexible, mobile lifting where building structural support isn't available or where equipment needs to move between job sites or outdoor locations.
What are bridge cranes used for?
Bridge cranes handle permanent, heavy-duty indoor lifting in manufacturing, steel production, and fabrication shops. American Hoists' fully assembled bridge crane systems cover 1/8 ton to 10 tons for continuous industrial use.
What is a portable gantry crane?
A portable gantry crane is a lightweight, often wheeled, A-frame structure designed for smaller loads and easy relocation between workstations or job sites.
What is a gantry hoist?
A gantry hoist refers to the chain or wire rope hoist mechanism mounted on a gantry crane's bridge beam, the component that actually lifts and lowers the load.
