Introduction
A jib crane spec sheet looks straightforward until you're standing on the shop floor trying to figure out why your rated 2-ton crane can't handle the load you thought it should. Many buyers struggle with this exact gap between catalog numbers and real-world performance.
Capacity, span, rotation, and height are engineered boundaries that determine whether your lift is safe or a liability. Get them wrong, and you're looking at boom deflection, structural fatigue, or worse.
This article breaks down what each specification actually means, typical ranges by mount type, how manufacturers measure and validate them, and the mistakes that cost buyers money and, occasionally, safety.
Key Takeaways
- Core specs (capacity, span, rotation, height, and power) are governed primarily by mount type, not brand
- Capacity runs from ~100 lbs on tool-support jibs to 15+ tons freestanding; wall-mounted models usually top out near 5 tons
- Rated capacity already folds in hoist weight and impact allowances, so usable lift sits below the nameplate number
- Space needs depend on boom length, rotation angle, and headroom, not just floor footprint
- Treating nominal spec values as fixed absolutes is one of the costliest buying mistakes
What Jib Crane Specifications Represent in Crane Design and Selection
Jib crane specifications are the engineered parameters (capacity, span, rotation, height, and power) that define how, where, and how much a given crane can safely lift. They form a matched set of design decisions that only work together.
Here's the part buyers often miss: specs operate on two levels simultaneously.
- Fixed design parameters — set at manufacture from structural calculations, steel grade, and welding specs
- Live operating constraints — limits that apply every time the crane is used, regardless of the nameplate rating

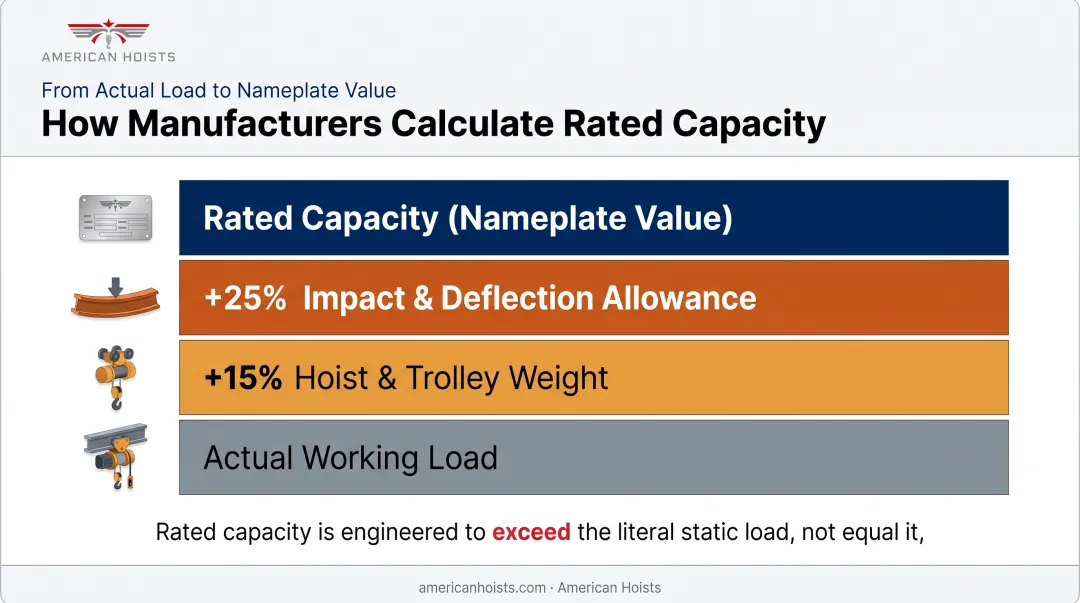

Published capacity figures are derived values, not marketing round numbers. Manufacturers calculate rated capacity from a design load that adds roughly 15% for hoist and trolley weight, plus around 25% for impact and deflection allowance, on top of the actual working load. That's why a "1-ton" jib crane is built to handle more stress than a literal 2,000-pound static weight on the hook.
Factors That Influence Specifications in Real-World Operation
Nominal spec sheet values often diverge from field performance once installation conditions enter the picture:
- Mounting type — floor, wall, mast, and portable mounts distribute loads differently, changing capacity and rotation range
- Material grade and weld quality — tolerances drive long-term rated performance versus theoretical design capacity
- Duty cycle — continuous, high-cycle work stresses booms, bearings, and welds far more than intermittent use
- Environmental exposure — outdoor, corrosive, or extreme-temperature sites may need upgraded coatings or materials
Equipment built for round-the-clock manufacturing needs that extra structural margin from the start. None of these factors show up as a single line on a spec sheet, but they all shape what the crane can actually do once it's bolted down.
Range of Key Jib Crane Specifications
Every core specification has a nominal operating range, an upper or lower design limit, and a safe operating margin, and all three shift depending on mount type.

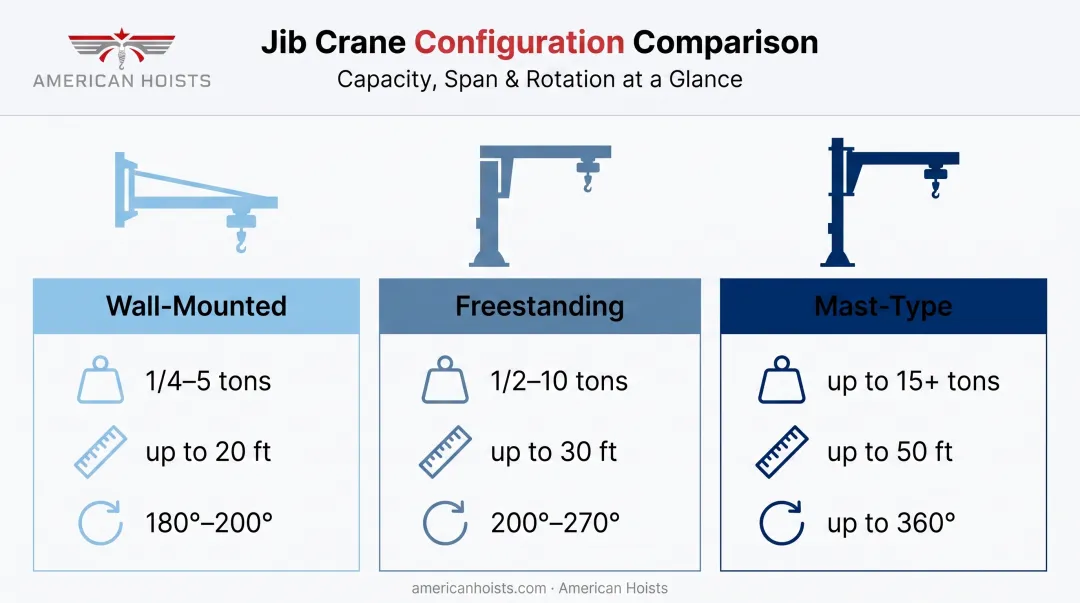

Capacity Range by Mount Type
Capacity bands vary widely across manufacturers, and these groupings are commercial conventions, not standardized ASME or CMAA classes:
| Duty band | Typical capacity | Common mount type |
|---|---|---|
| Light-duty / tool support | 100–500 lbs | Wall bracket, articulating |
| Medium-duty | 500–2,000 lbs | Wall-mounted, articulating |
| Heavy-duty | Up to 15 tons or more | Freestanding, mast-type |
Spanco's freestanding jib crane line publishes capacities up to 15 tons and spans up to 50 feet, while wall-mounted cantilever units are structurally capped lower — typically around 5 tons — because the building wall or column itself is bearing the load.
American Hoists' catalog reflects this same pattern: wall-mounted jib cranes run from 1/4 ton to 5 tons (500–10,000 lbs), while the foundationless freestanding line covers 1/4 ton to 1 ton (500–2,000 lbs), with select configurations available as base-plate mounted rather than fully foundationless.
A note on weight: actual crane weight for a given capacity varies enormously by configuration. Manufacturer data shows a 5-ton freestanding unit can range from under 5,000 lbs to over 8,000 lbs depending on span and underboom height, while a column-mounted tension-braced 5-ton model might weigh under 3,000 lbs. There's no shortcut. Always confirm exact weight from engineering drawings for your specific configuration.
Span, Working Radius, and Space Requirements
Span is generally measured from the mast midpoint or wall bracket to the end of the boom. Working span is narrower — it's the usable lifting distance once you subtract trolley clearance at either end.
This distinction matters because buyers often size a crane to the longest available arm instead of the actual farthest lift point they need. That mismatch wastes capacity margin and increases the load on pivot points unnecessarily.
- Boom lengths commonly range from 8 feet to 20+ feet depending on mount type
- American Hoists' wall-mounted units offer jib lengths up to 20 feet; the freestanding foundationless line goes up to 16 feet
- Longer booms raise structural stress, so manufacturers pair capacity and span instead of treating them as independent specs
Rotation, Height, and Power Requirements
Rotation range depends heavily on mount type:
- Freestanding and mast-type cranes: up to 360° (full circle around the base)
- Wall-mounted and articulating models: typically 180°–200°
American Hoists' lineup follows this pattern closely — 180° rotation on wall-mounted units, 360° on the foundationless freestanding line.
Underboom height (HUB) is the clearance from the floor to the underside of the boom, and it's a different number from overall crane height. Both need to be checked against:
- Available ceiling headroom
- Any overhead obstructions (ductwork, sprinkler lines, existing structures)
- The actual vertical lift distance the application requires
Power options span manual, electric, and air-driven systems for rotation, trolley travel, and hoisting. Indoor units can typically run on standard manual or electric configurations, while outdoor installations need weatherized enclosures rated for the site's exposure conditions.
How Jib Crane Specifications Are Documented, Measured, and Validated
Specifications live in two places: engineering documentation and the physical capacity plate mounted on the crane itself. Rated (calculated) values and tested (verified) values are not automatically the same thing.
Manufacturer datasheets and capacity plates typically list:
- Rated capacity
- Span
- Duty class (often referenced against industry duty-class standards)
Verification methods commonly include proof-load testing at a percentage above rated capacity, structural inspection, and deflection checks before a crane goes into service. Industry guidance from the Overhead Alliance describes test-load requirements generally falling between 100% and 125% of rated capacity for newly installed or modified crane and hoist equipment. Exact percentages vary by manufacturer and application.
Here's where field conditions matter: foundation depth, floor flatness, and structural attachment integrity on-site can all affect what a crane can practically achieve compared to its lab-tested figures. A crane that tests perfectly in a controlled environment can underperform if the mounting surface isn't up to spec.
Implications of Ignoring or Misreading Jib Crane Specifications
Misapplied specifications cause failures, not just inefficiency. The chain of cause and effect is direct.
Overloading beyond the rated capacity margin causes:
- Boom deflection (visible bending under load)
- Structural fatigue at welds and pivot points
- Catastrophic structural failure in severe cases
One of the most common and costly misreadings is treating nominal capacity as a fixed number. Capacity shifts with boom extension, rotation speed, and duty cycle. A crane rated for 2 tons at a specific span isn't automatically rated for 2 tons at maximum extension under continuous rotation.
Combining maximum span with frequent full-rotation cycles accelerates fatigue at welds and pivot points faster than either factor alone.
This interaction effect is where a lot of preventable damage happens. A crane running near its rated limit occasionally is one thing. Running near that limit continuously, at full boom extension, with frequent 360° cycles, creates a different stress profile even though the spec plate hasn't changed.

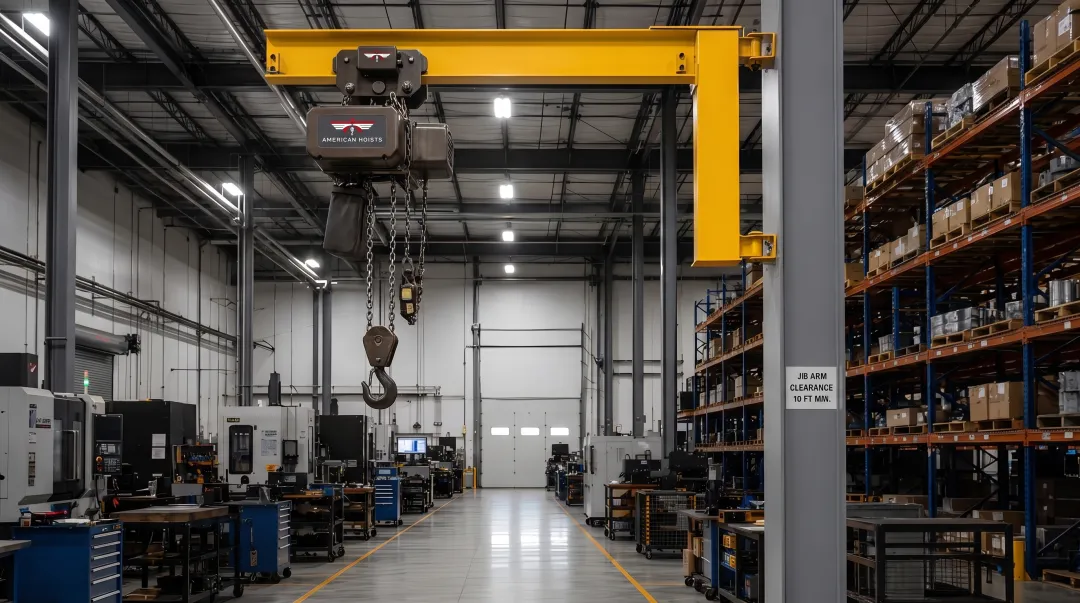

System-level safety also depends on matching the crane's specs to an equally well-rated hoist. Specs read in isolation make this easy to overlook. American Hoists supplies chain and wire rope hoists engineered for continuous 24/7 duty that pair with jib crane installations to keep production moving without downtime from mismatched equipment.
Conclusion
Jib crane specifications are governing engineering parameters. Capacity, span, rotation, and height all interact, and how they behave under real operating conditions determines whether the installation holds up or becomes a costly problem.
Published spec sheets are a starting point, not the final word. Engineering judgment and professional consultation matter just as much as the numbers on the plate. If you're specifying a hoist to pair with a jib crane system, American Hoists' specialist support team can help you match capacity, headroom, and duty rating correctly. Reach out at 817-779-4820 or info@americanhoists.com before you order.
Frequently Asked Questions
What are the key specifications of a jib crane?
The core specifications are capacity, span or working radius, rotation angle, underboom height (HUB), and power requirements. Buyers should confirm all five before selecting a unit, since they're interdependent rather than independent choices.
What are the space requirements for a jib crane?
Space needs depend on boom length, rotation range, and required headroom clearance above the boom: not simply floor footprint. A 360° freestanding unit needs clear circular space around its base, while a wall-mounted model needs adequate wall or column support instead.
How much does a 5 ton jib crane weigh?
Weight varies by mount type and boom length. Published examples range from under 3,000 lbs to over 8,000 lbs for different 5-ton configurations. Always confirm exact figures from the manufacturer's engineering drawings for your specific setup.
What is the difference between rated capacity and safe working load on a jib crane?
Rated capacity already includes built-in allowances for hoist and trolley weight plus impact, so it's a calculated ceiling, not a target to approach or exceed. Pushing toward that number erodes the safety margin built into the rating.
Can jib crane specifications change after installation?
Yes. Structural modifications, added attachments, or accumulated wear can effectively reduce usable capacity even though the original spec plate stays the same. Periodic inspection is the only way to catch this drift.
How do I know what hoist is compatible with my jib crane's specifications?
Hoist capacity, headroom, and duty rating need to align with the crane's rated capacity and HUB. American Hoists specialists match these components to the crane so the full system delivers its rated performance without undercutting capacity or clearance.
